PXF Lighting

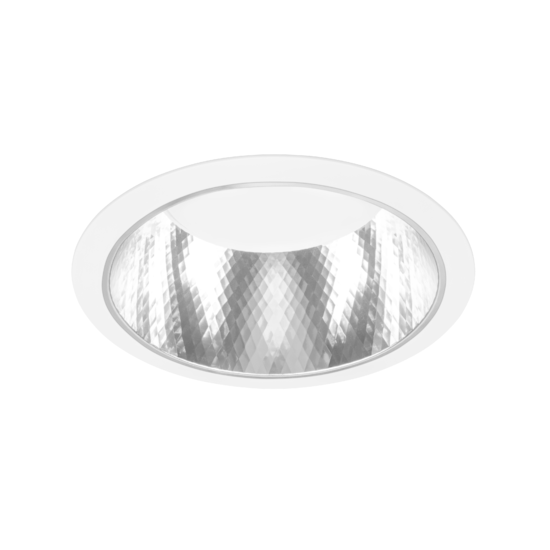

Bari ECO DL LED

Modern and universal downlight luminaire of high lighting performance, based on LED module. Application: offices, hotels, restaurants, halls, shopping malls.

Basic information:
Materials: Powder painted, white aluminum ring, steel sheet body, OPAL diffuser, reflector made of polished aluminum with a purity of 99,85%.
Installation: Into plaster cardboard and modular ceilings.
Power: 220 ... 240 V

Downloads

IES Files
Supplier Declaration of Conformity
Manufacturers Page

Technical Parameters

Luminaire Luminous Flux
    750-2830lm
Luminaire Power (W)
    10-28W
Colour Temperature (CCT)
  • 3000K
  • 4000K
Colour Rendering Index (CRI)
  • Ra 80
  • Ra 90
LED Colour Consistency
    SDCM 3
LED Lumen Maintenance
    L80 B10 72,000hrs
Driver - Control Options
  • Standard - on/off
  • DALI
  • Casambi
Ingress Protection Rating (IP)
    IP44
Impact Resistance Rating (IK)
    IK07
