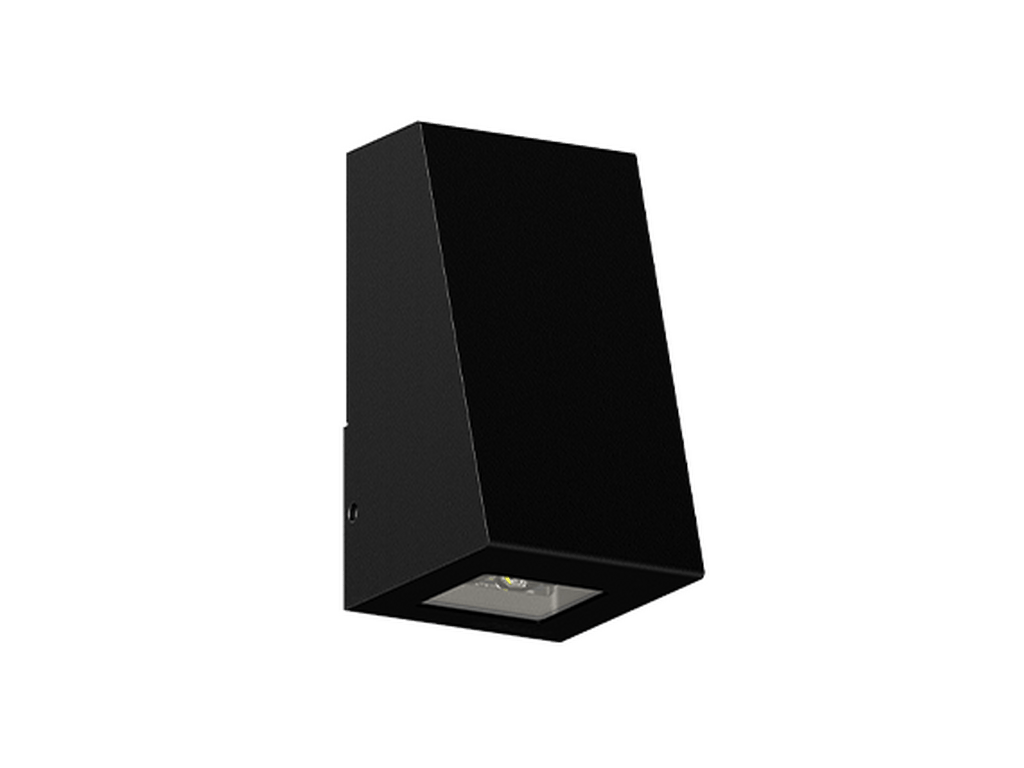

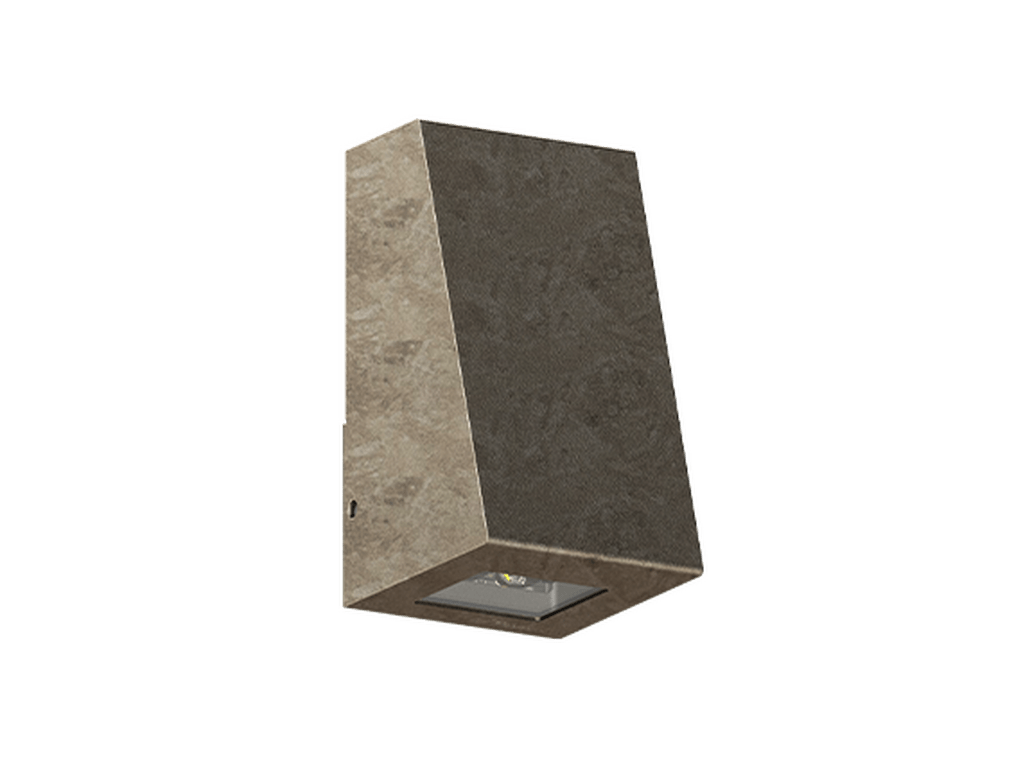

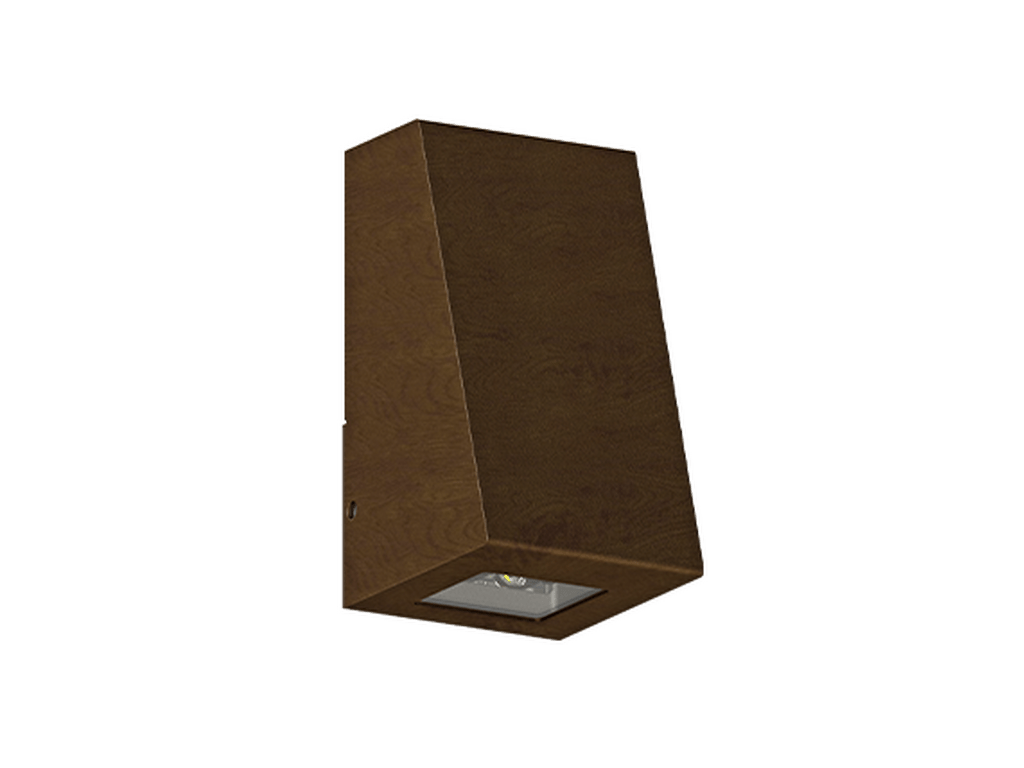

Contemporary, angular surface-mounted downlight available in three different widths with corresponding lumen packages. Offering a variety of beam options, LEEDS WEDGE provides a versatile solution in an aesthetically pleasing form.

  • Available in three sizes

  • Die-cast aluminium housing and frame.
  • Pre-treated before powder coating ensuring high corrosion resistance
  • Single cable entry or two cable entries for through wiring upon request
  • Stainless steel fasteners in grade 304 with zinc flake coating (ZFC)
  • Durable silicone rubber gasket
  • Clear toughened glass
  • Integral control gear
  • Optional surface mounting box for easy wiring or conduit connection when wiring from behind is not possible
  • Available with a wide range of optics

Downloads & Info

Technical Parameters

Colour Temperature (CCT)
  • 3000K
  • 4000K
Impact Resistance Rating (IK) IK07
Ingress Protection Rating (IP) IP65
Colour Rendering Index (CRI)
  • Ra 80
Luminaire Luminous Flux 576lm - 2422lm
LED Colour Consistency SDCM 3
LED Lumen Maintenance L90 B10 90,00hrs
Luminaire Power (W) 8W | 14W | 20W
Driver - Control Options
  • Standard - on/off
  • DALI Dimmimg
  • 1-10V Analogue Dimming
