Ligman

Quarter 1 - 37w

Rounded profile wall-mounted area downlight.

Classic and practical profile affording wildlife and dirt resistant urban area lighting solutions.

  • Die-cast aluminum frame and body
  • Pre-treated before powder coating ensuring high corrosion resistance
  • Two cable entries for through wiring
  • Stainless steel fasteners in grade 304 with zinc flake coating (ZFC)
  • Durable silicone rubber gasket
  • Frosted glass diffuser

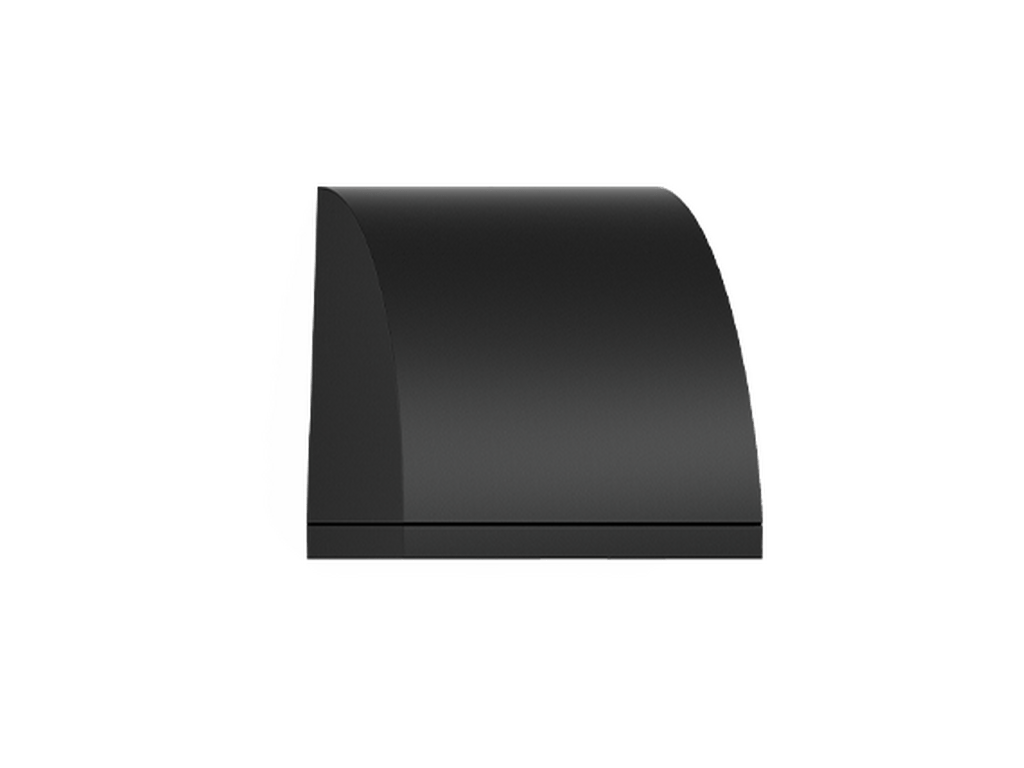

  • Product colour 01 - Black (RAL 9011) 06 - Bronze (RAL 6014) 02 - Dark Grey (RAL 7043) 03 - White (RAL 9003) 05 - Matt Silver (RAL 9006)

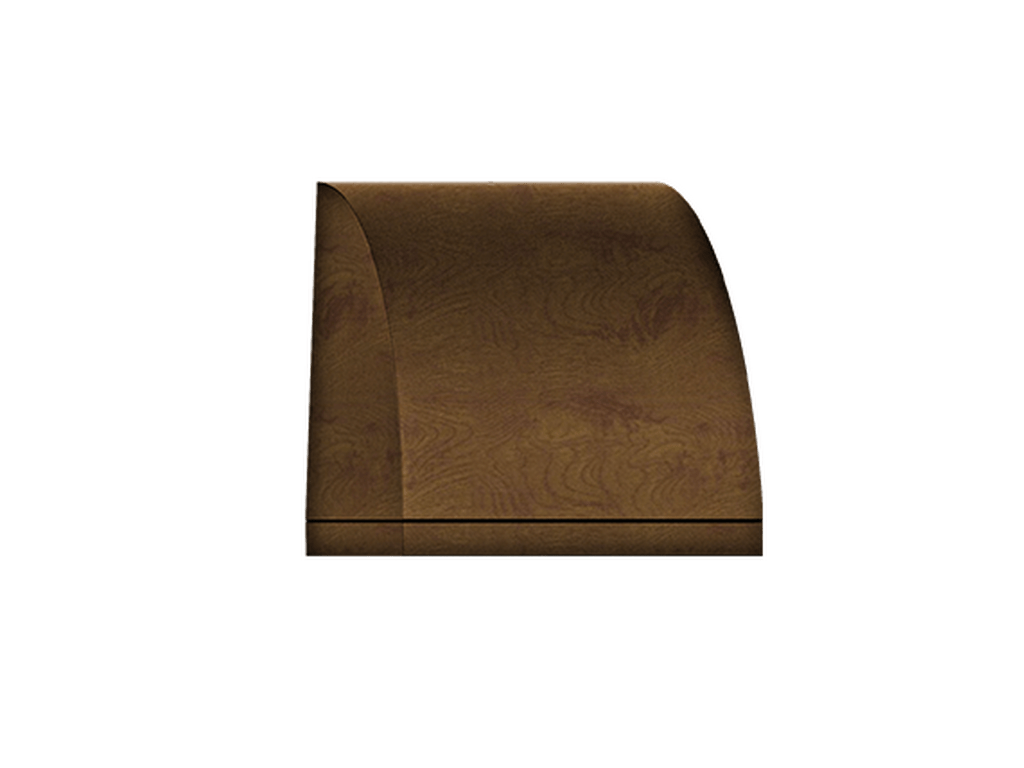

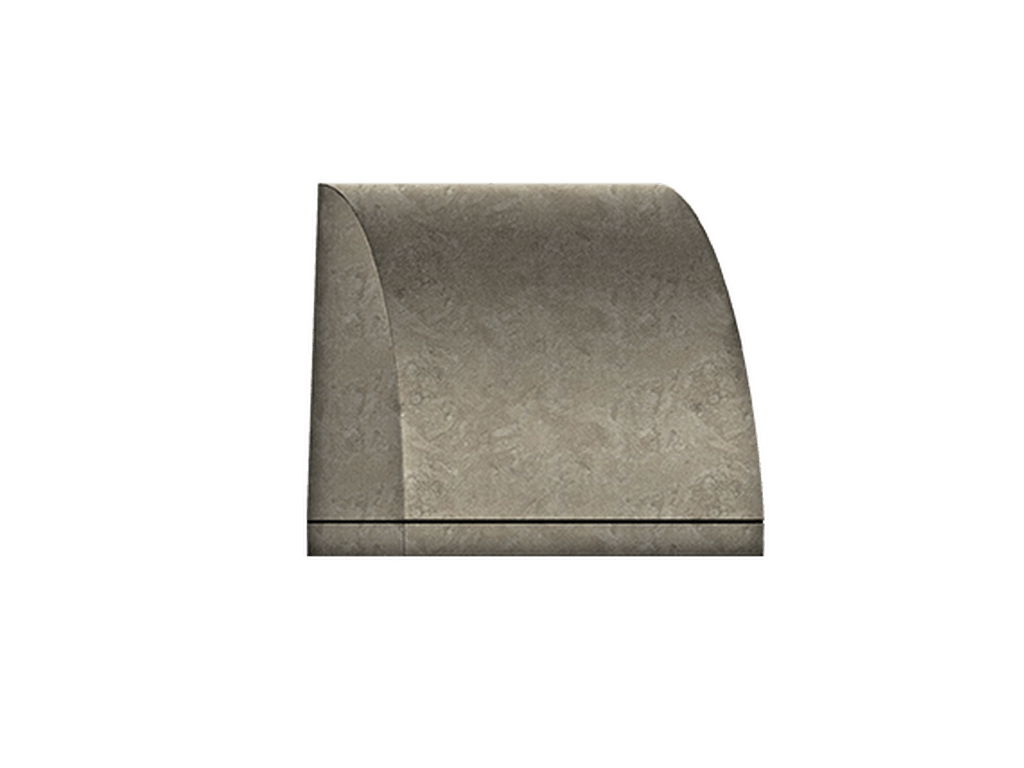

  • Additional finishes are available upon request, including Woodland & Urban finishes from the Special Textured Finish Range.
  • 8 optic choices
  • Integral control gear










Downloads

IES Files
Data Sheet
Supplier Declaration of Conformity
Manufacturers Page

Technical Parameters

Luminaire Luminous Flux
    4454lm - 5121lm
Luminaire Power (W)
    37W
Colour Temperature (CCT)
  • 3000K
  • 4000K
Colour Rendering Index (CRI)
  • Ra 80
LED Colour Consistency
    SDCM 3
LED Lumen Maintenance
    L90 B10 90,000hrs
Driver - Control Options
  • Standard - on/off
  • DALI
  • 0/1-10V
Ingress Protection Rating (IP)
    IP65
Impact Resistance Rating (IK)
    IK08
