KIOS

Ligman

Professional technical in-ground lighting solutions. Sophisticated and expansive; single, twin-lamp, white and RGBW DMX, with 7 beam types.

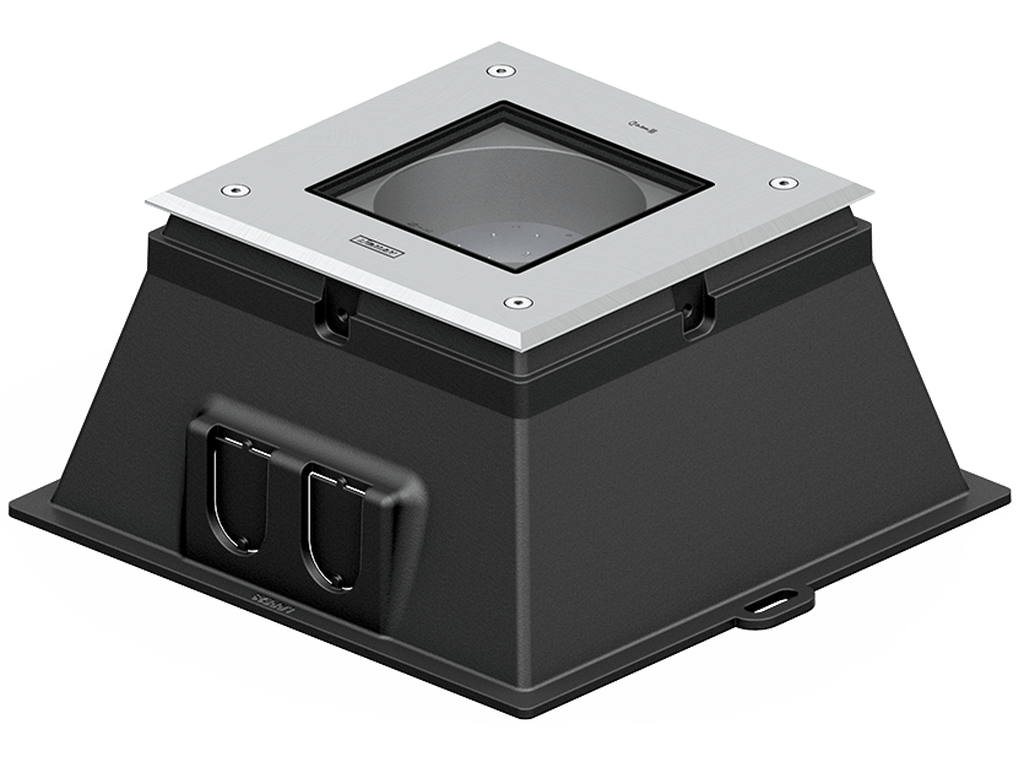

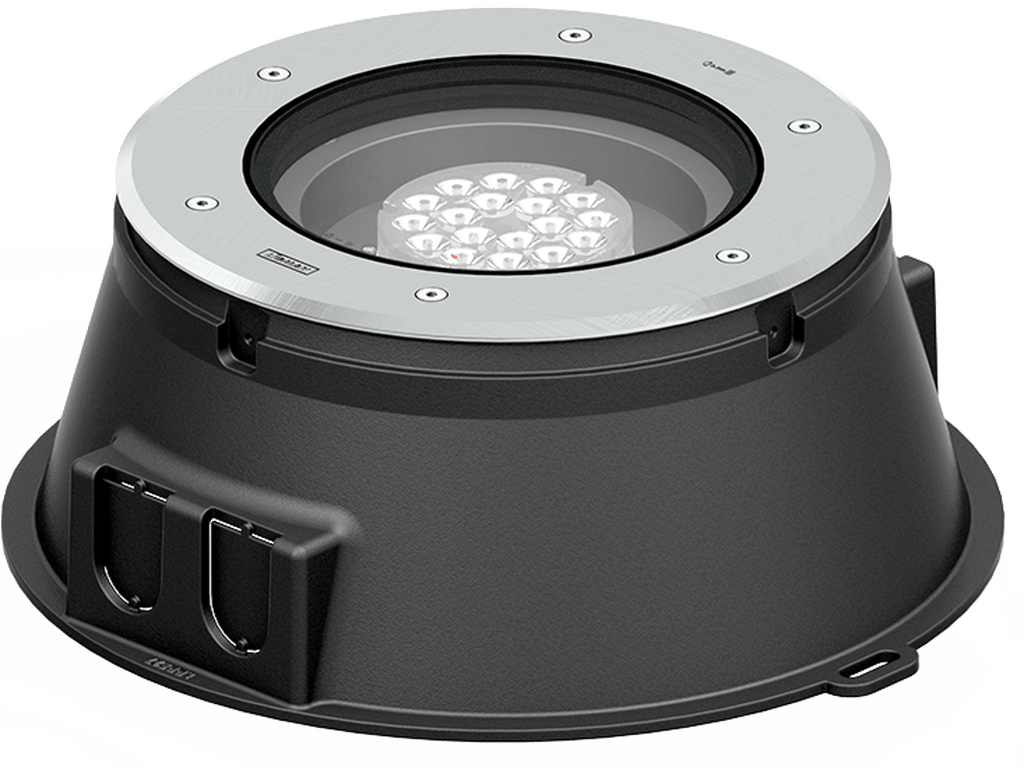

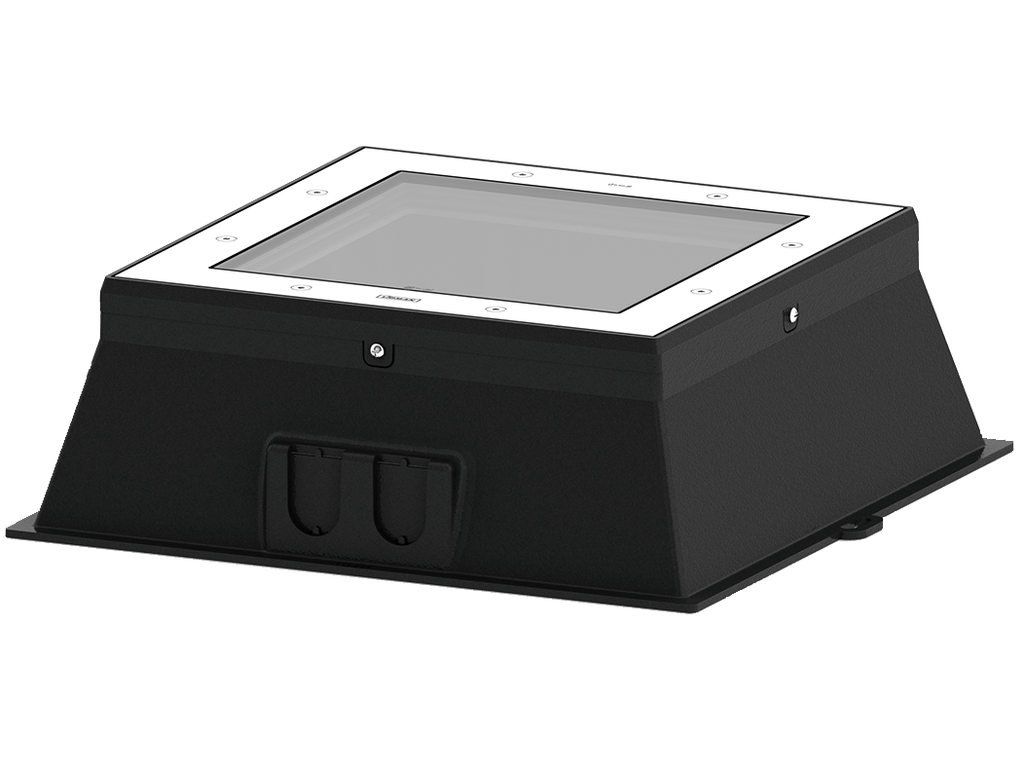

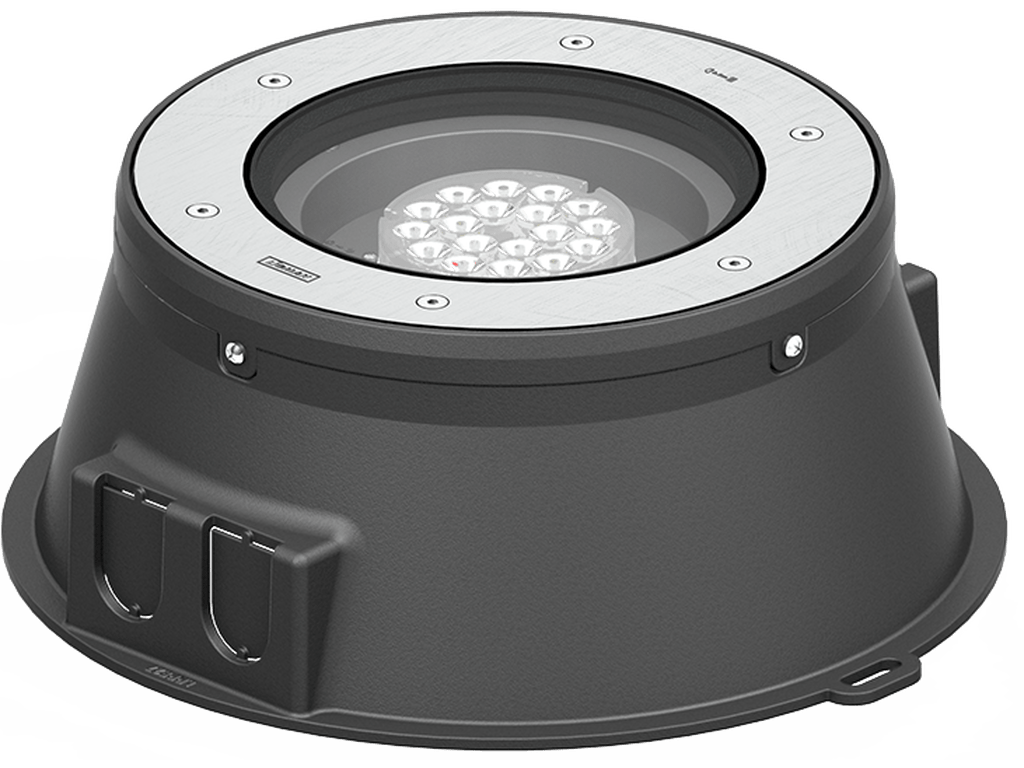

  • Round or Square - 216mm - 350mm
  • Flat or Embossed Stainless Steel Frame
  • Stainless steel fasteners in grade 316
  • Clear or frosted toughened glass 15mm
  • Integral control gear
  • Recessing box in high density polyethylene is included
  • Suitable for drive-over with a maximum load of 2000 kg

Features

Features
Wattage
6W - 33W
Lumen Output89lm - 3320lm
OpticVN, N, M, W , E, T4, F, G
Colour Temperature3000K, 4000K, RGBW
Colour Rendering IndexRa > 80
LED Colour ConsistencySDCM 3
LED Lumen MaintenanceL90 B10 >60,500hrs
Ingress Protection Rating (IP)IP67
Impact Protection Rating (IK)IK10

Dimming Options

  • Non-Dimmable - Standard
  • 1-10V Analogue dimming
  • DALI
  • DMX (for RGBW version)
Spec SheetMore Info

Technical documentation is available on request
Including LM-80, LM-79, Thermal Test reports & TM-21 calculations
