PXF Lighting

Fibra IV LED

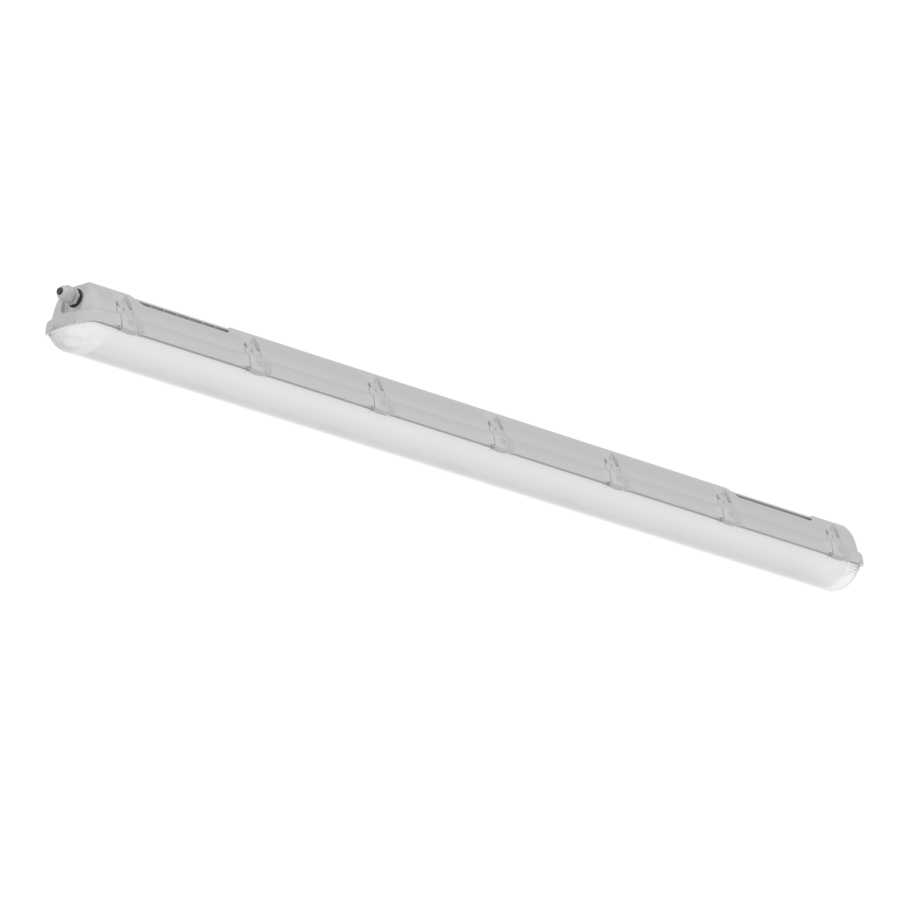

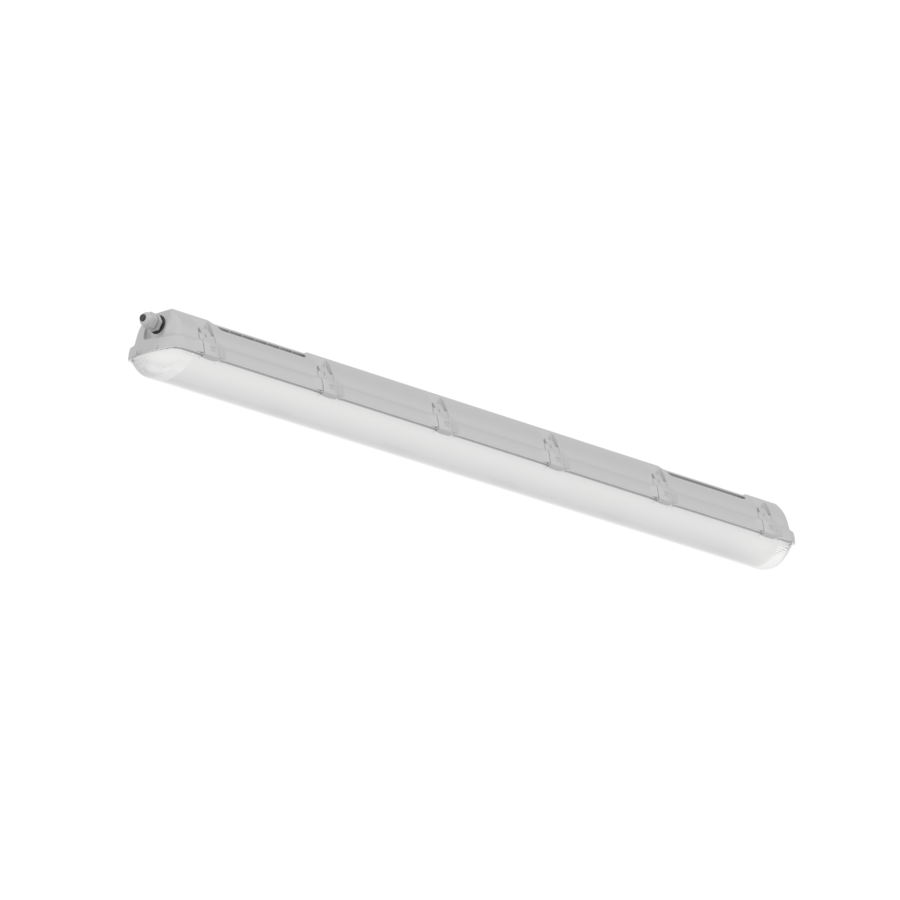

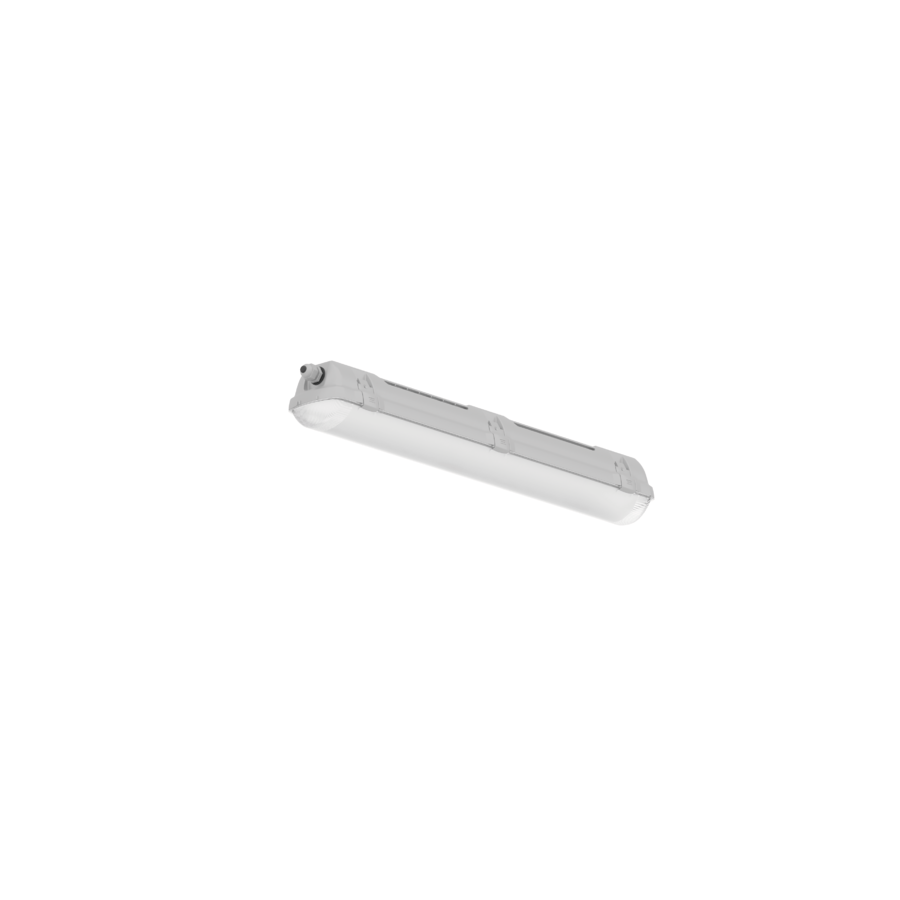

Industrial IP66 IK10 weatherproof batten for harsh industrial conditions. Can be either surface-mounted or suspended.

Base made of impact-proof polycarbonate, OPAL diffuser, UV stabilized, polycarbonate PC diffuser, fiberglass reinforced clips, Stainless steel clips available also.

  • 615mm, 1175mm or 1455mm long
  • IK10
  • IP66
  • IES & BIM/Revit files available

1175mm version available in 3hr emergency lighting version, independently tested to AS/NZS 2293.3

Downloads

IES Files
Data Sheet
Manufacturers Page

Technical Parameters

Luminaire Luminous Flux
    1,970-14,220lm
Luminaire Power (W)
    12-82W
Colour Temperature (CCT)
  • 3000K
  • 4000K
Colour Rendering Index (CRI)
  • Ra 80
  • Ra 90
LED Colour Consistency
    SDCM 3
LED Lumen Maintenance
    L90 B10 60,000hrs
Driver - Control Options
  • Standard - on/off
  • DALI
  • 0/1-10V
  • Casambi
  • Emergency
Ingress Protection Rating (IP)
    IP66
Impact Resistance Rating (IK)
    IK10
