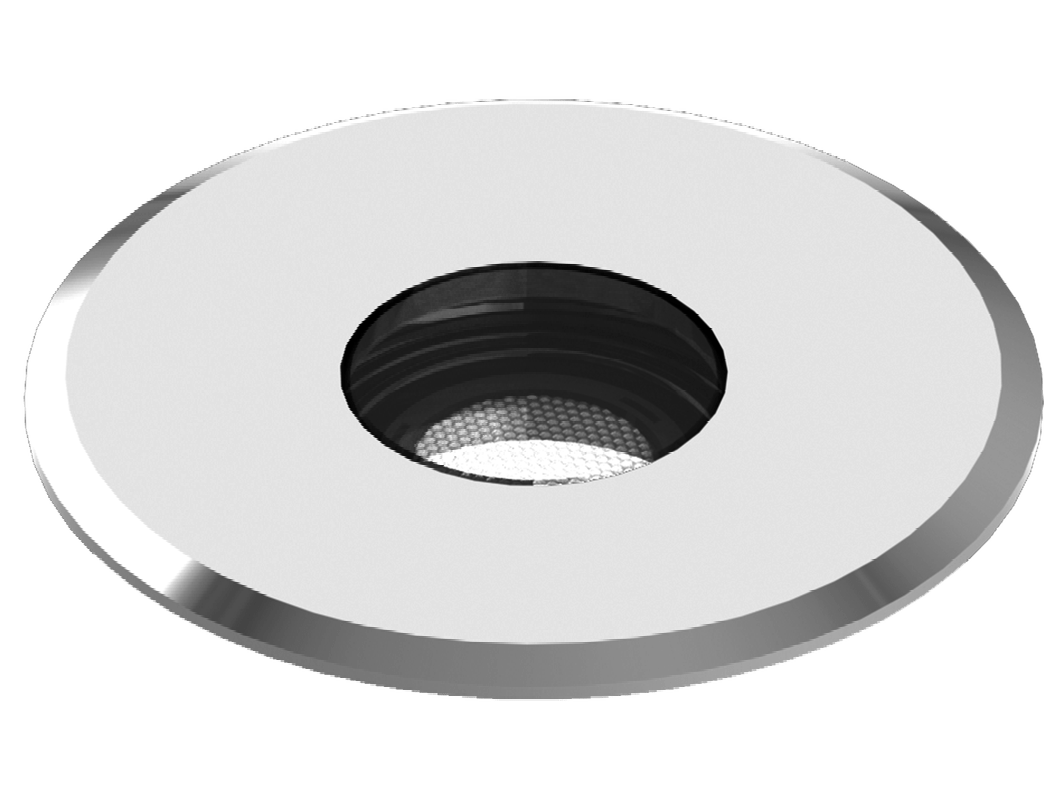

NEVADA

Ligman

Discrete, minimal-footprint in-ground accent lighting. White light or dynamic RGBW options with connection accessories and controls system. Die-cast aluminium housing pre-treated before powder coating ensuring high corrosion resistance.

Ø75mm
3 mm thick front ring in stainless steel
Stainless steel fasteners in grade 316
Clear, 8 mm thick, toughened glass
Remote driver is not included
Recessing box in high density polyethylene is included
Suitable for walk-over with a maximum load of 200kg

Features

Features
Wattage	2W & 5W
Lumen Output	143lm - 227lm
Optic	N, M, W , E
Colour Temperature	3000K, 4000K, RGBW
Colour Rendering Index	Ra > 80
LED Colour Consistency	SDCM 3
LED Lumen Maintenance	L90 B10 60,000hrs
Ingress Protection Rating (IP)	IP67
Impact Protection Rating (IK)	IK10

Dimming Options

Non-Dimmable - Standard
1-10V Analogue dimming
DALI
DMX (for RGBW version)

Spec Sheet More Info

Technical documentation is available on request
Including LM-80, LM-79, Thermal Test reports & TM-21 calculations
