Ligman

Kios 7 - 30w

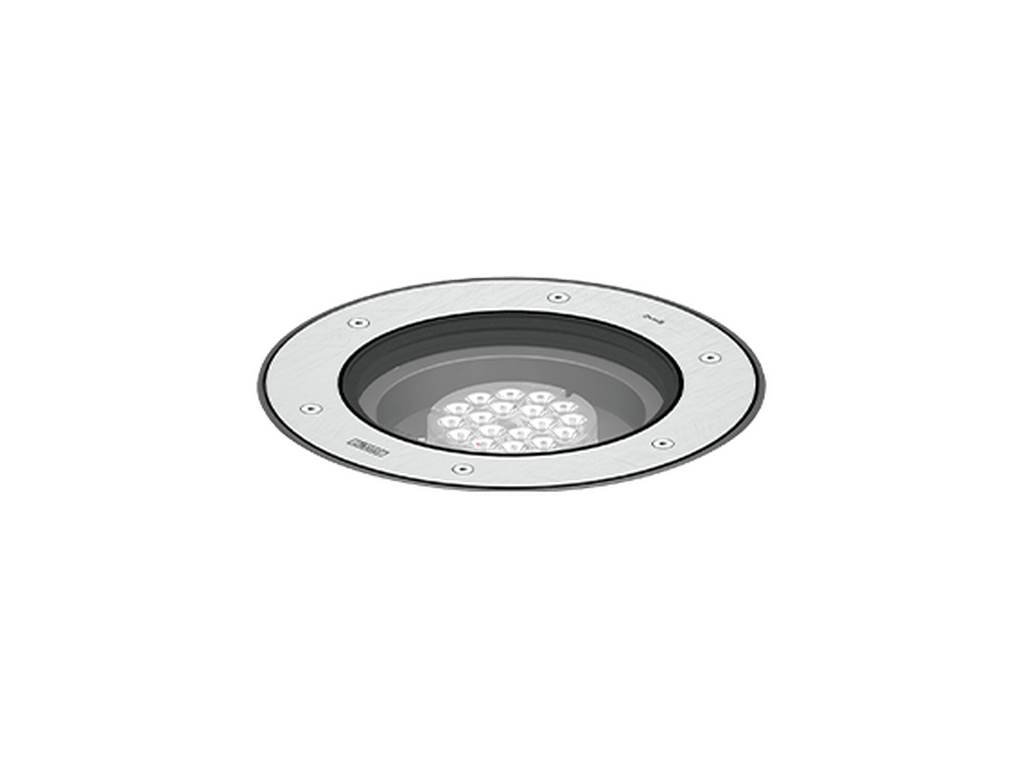

Professional technical in-ground lighting solutions from Ligman.

  • Die-cast aluminum housing- Pre-treated before powder coating ensuring high corrosion resistance
  • Flat frame
  • 5.5 mm thick front ring in grade 316 stainless steel
  • Single cable entry, through wiring upon request
  • Stainless steel fasteners in grade 304 with zinc flake coating (ZFC)
  • Optic choices N M W
  • Suitable for drive-over with a maximum load of 2000 kg
  • Durable silicone rubber gasket
  • Clear toughened glass- High-efficiency PMMA lens
  • Integral control gear

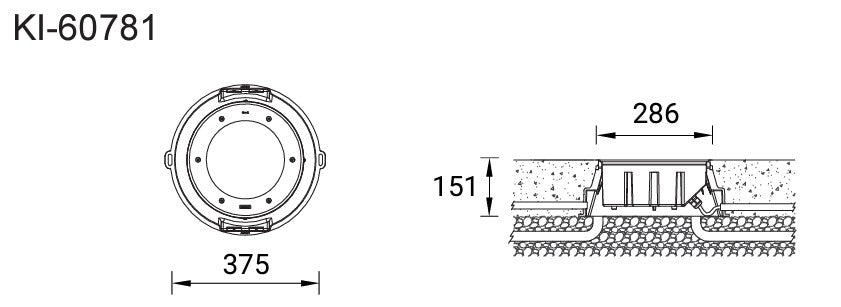

  • Recessing box in high-density polyethylene is included
  • Anti slip glass optional
  • Adjustable: Tilts 5° or 10°






Downloads

IES Files
Data Sheet
Supplier Declaration of Conformity
Manufacturers Page

Technical Parameters

Luminaire Luminous Flux
    2872lm - 3160lm
Luminaire Power (W)
    30w
Colour Temperature (CCT)
  • 3000K
  • 4000K
Colour Rendering Index (CRI)
  • Ra 80
LED Colour Consistency
    SDCM 3
LED Lumen Maintenance
    L90 B10 120,000hrs
Driver - Control Options
  • Standard - on/off
  • DALI
  • 0/1-10V
Ingress Protection Rating (IP)
    IP67
Impact Resistance Rating (IK)
    IK10
