LADOR - Projector – Impressions Lighting

LADOR - Projector

Ligman

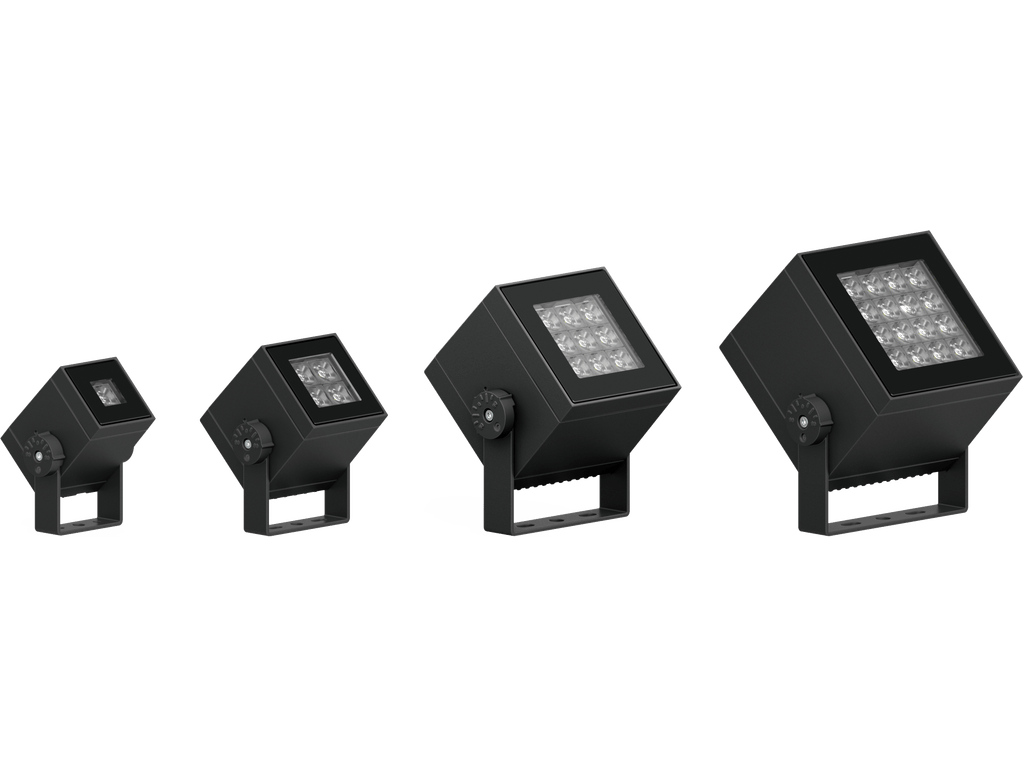

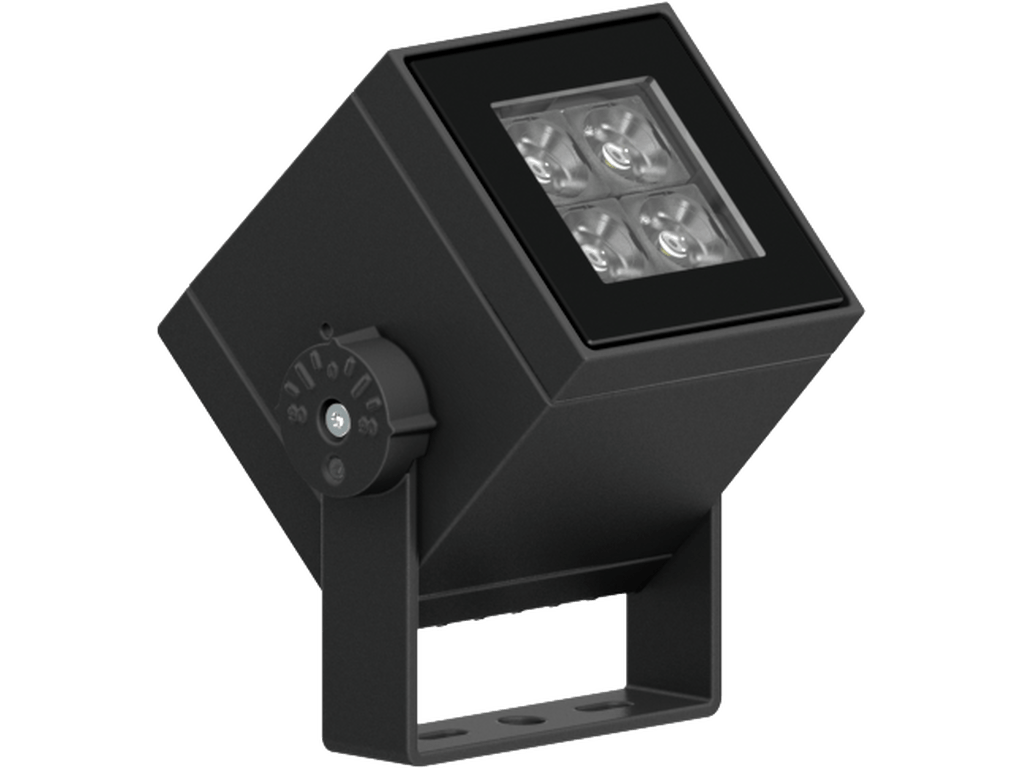

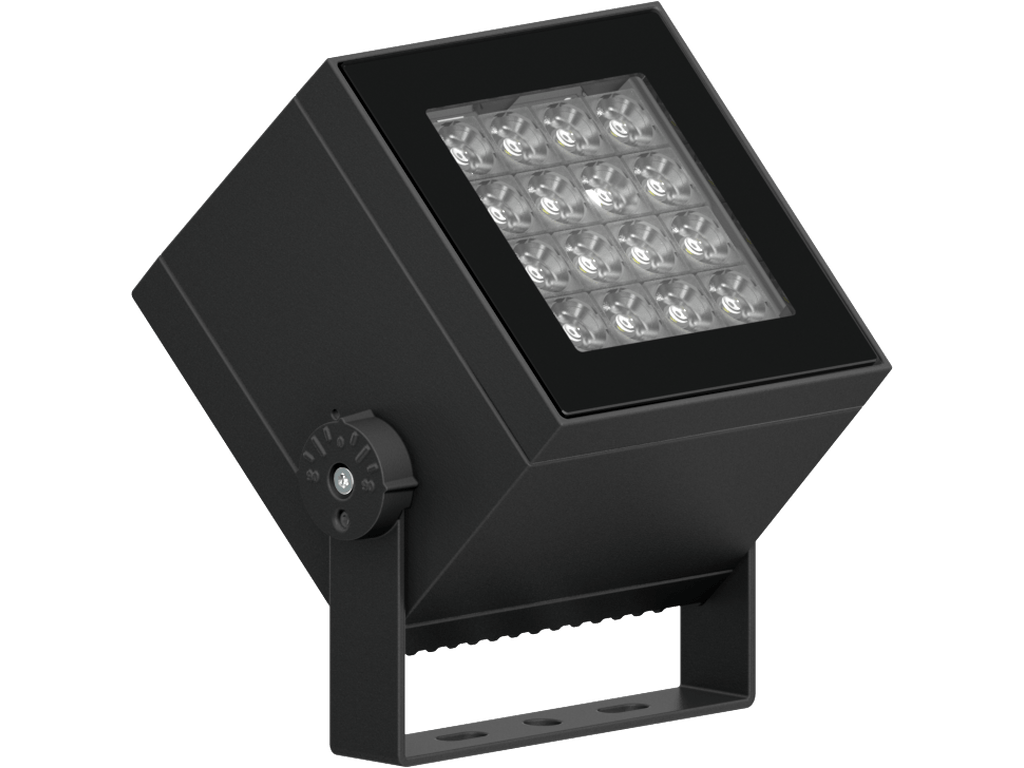

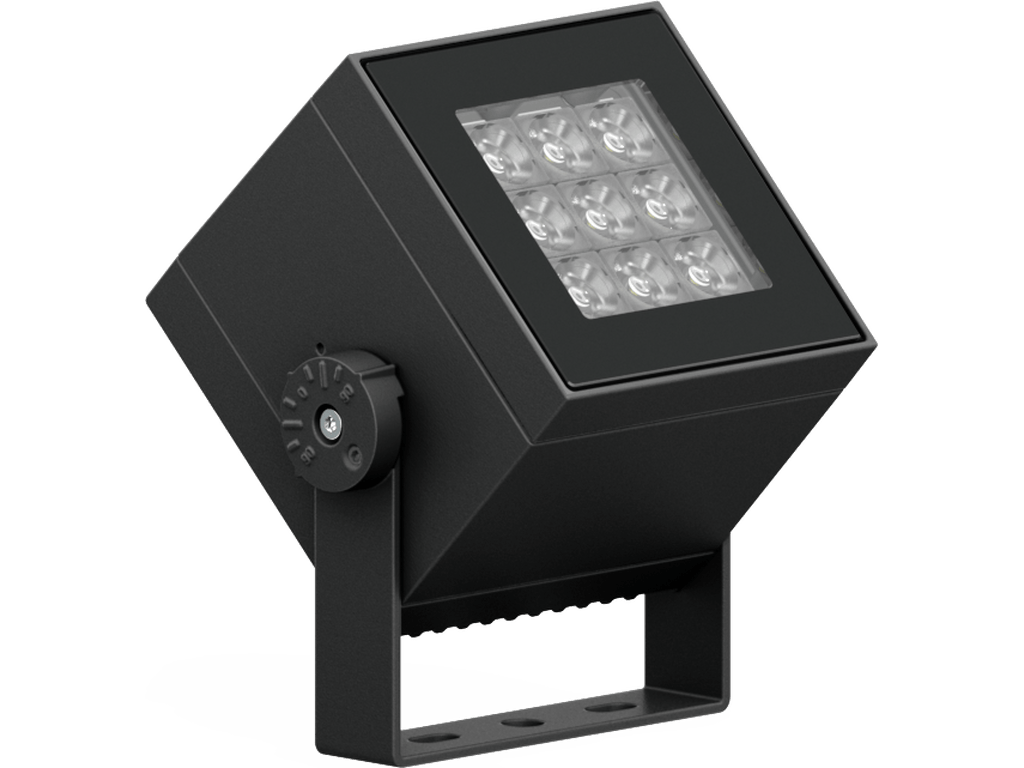

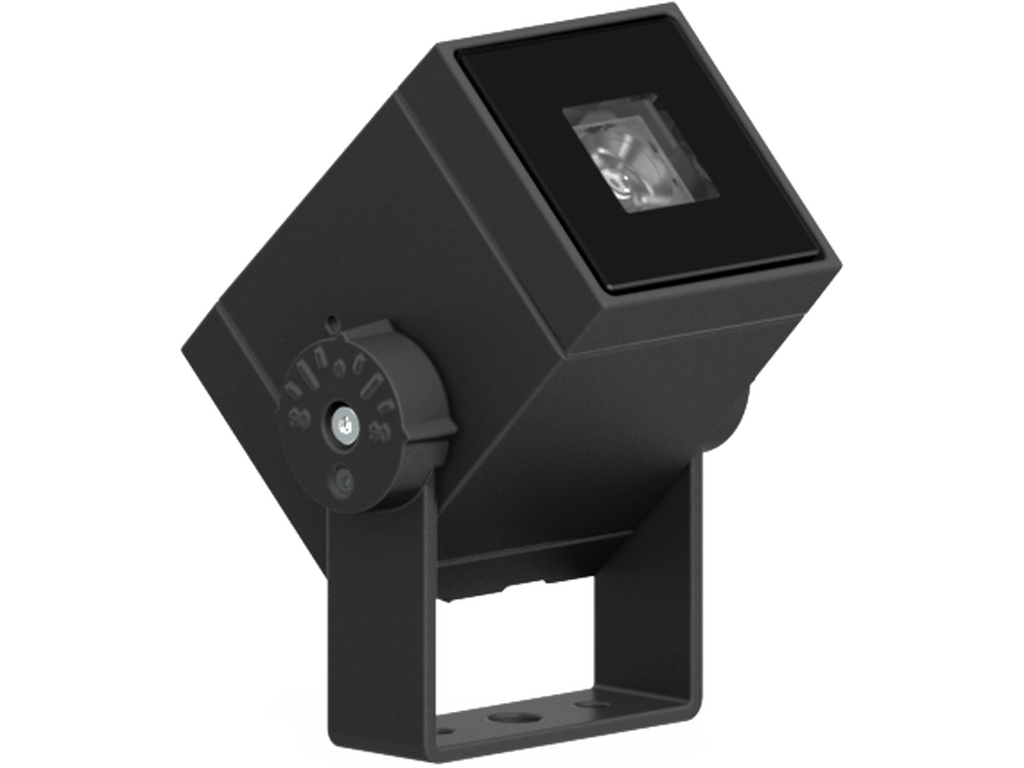

Square surface architectural floodlight range. Four sizes of square artistic precision with wide range of beam distributions. Die-cast aluminium housing pre-treated before powder coating ensuring high corrosion resistance.

Thermal heat dissipation body
Stainless steel fasteners in grade 316
High-efficiency PMMA lens
Clear toughened glass
Integral control gear

Features

Features
Wattage	3W - 39W
Lumen Output	149lm - 3,568lm
Optic	N, M, W, VW, E,
Colour Temperature	3000K, 4000K, RGBW
Colour Rendering Index	Ra > 80
LED Colour Consistency	SDCM 3
LED Lumen Maintenance	L90 B10 >135,000 hrs
Ingress Protection Rating (IP)	IP66
Impact Protection Rating (IK)	IK08

Dimming Options

Non-Dimmable - Standard
1-10V Analogue dimming
DALI
DMX (for RGBW version)

Spec Sheet More Info

Technical documentation is available on request
Including LM-80, LM-79, Thermal Test reports & TM-21 calculations
