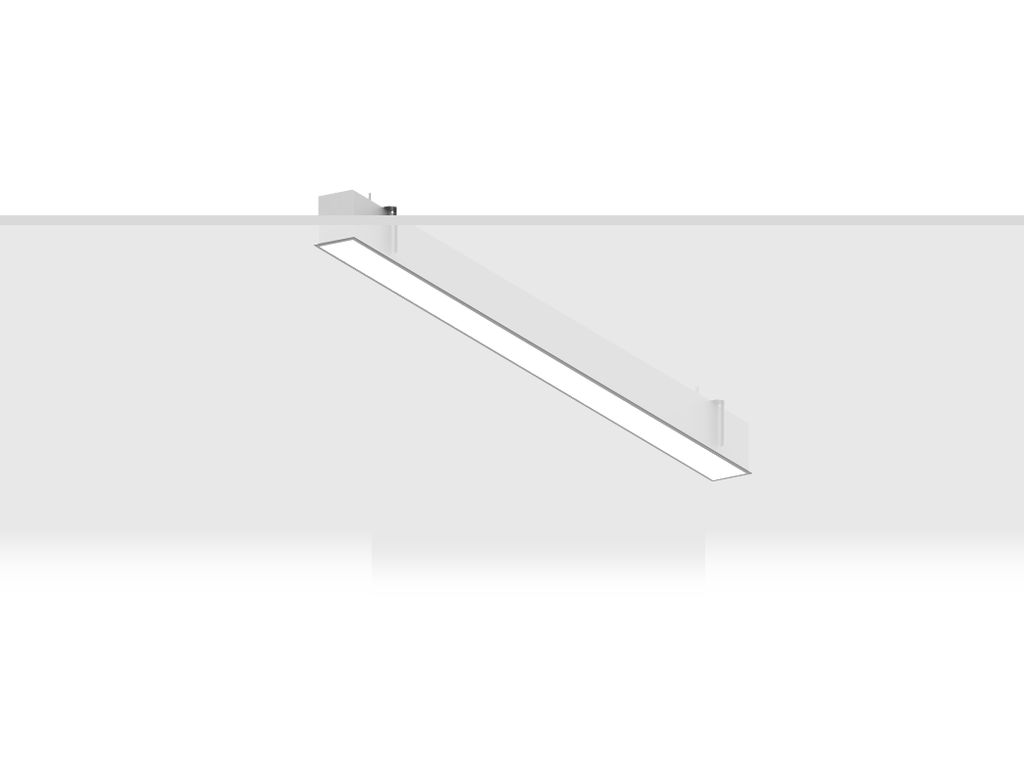

NYBRO - Recessed Ceiling

Ligman

Recessed Ceiling interior lighting system. Powerful, flexible continuous illumination with a myriad of light source and control options.  Die-cast aluminium end-caps and extruded aluminium profile with powder coating

  • Stainless steel fasteners in grade 316
  • Steel brackets for ceiling down mounting option
  • PMMA diffuser with Opal (UGR <19) and micro prismatic (UGR <13) options for better glare control
  • Up and down light distribution options
  • Integral control gear
  • Wireless control available through Bluetooth connection
  • Daylight and occupancy sensor options
  • Emergency module (1 or 3 hours) is available upon request with 3 options (BASIC, SELF-TEST, PRO-DALI)
  • Tunable White (CCT) Available (TUW)
  • RGBW Available

Features

Features
Wattage
11W - 105W
Lumen Output742lm - 10,538lm
OpticOpal or Micro Prismatic
Colour Temperature3000K, 4000K, RGBW, TUW
Colour Rendering IndexRa > 80
LED Colour ConsistencySDCM 3
LED Lumen MaintenanceL90 B10 68,000 hrs
Ingress Protection Rating (IP)IP20

Dimming Options

  • Non-Dimmable - Standard
  • 1-10V Analogue dimming
  • DALI
  • DMX (for RGBW version)
Spec SheetMore Info

Technical documentation is available on request
Including LM-80, LM-79, Thermal Test reports & TM-21 calculations
