Odessa 2 Cluster Pole
Odessa 2 Cluster Pole

Odessa 2 Cluster Pole

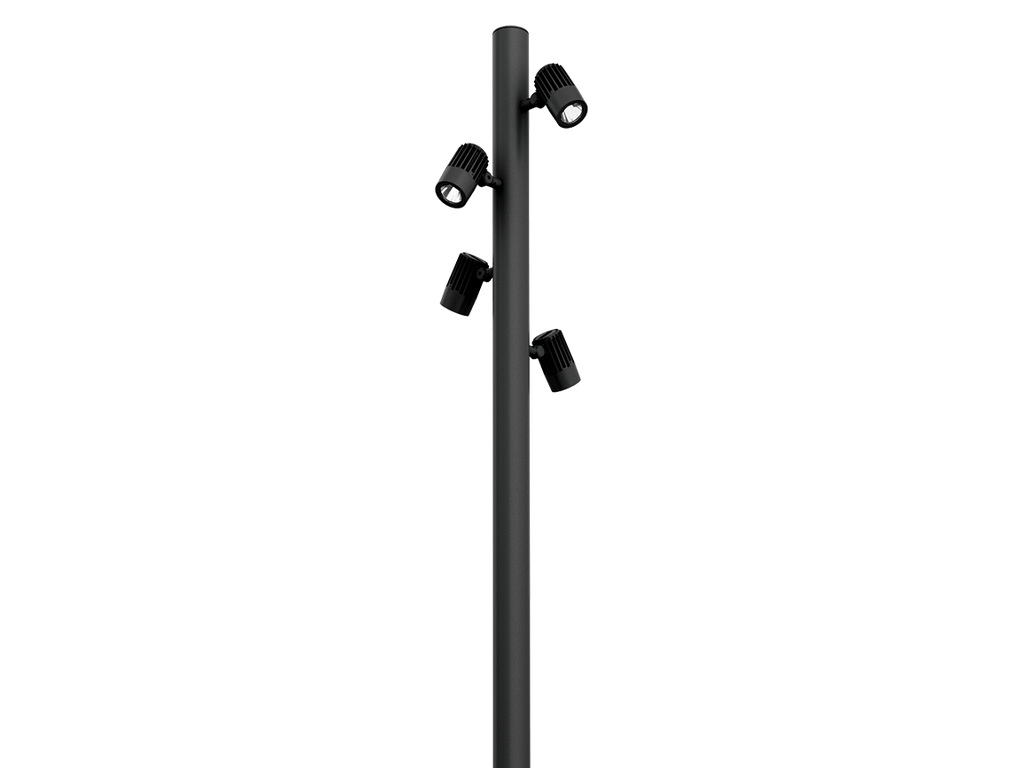

Adjustable column stylish projector spiral-cluster solution. Flexible project solutions in attractive spiral cluster arrangements utilizing the naturally beautiful and unique contemporary ODESSA projector range.

  • LM6 Die-cast aluminum housing and frame.
  • Chrome free pretreatment before powder coating ensuring high corrosion resistance
  • Single cable entry
  • Stainless steel fasteners in grade 304 with zinc flake coating (ZFC)
  • Durable silicone rubber gasket
  • Integral control gear
  • With medium Odessa spotlights
  • Five optic choices
  • 4m, 6m or 8m poles

Downloads

Data SheetDownload file
IES FilesDownload file

Technical Parameters

Colour Temperature (CCT)
  • 2700K
  • 3000K
  • 4000K
Ingress Protection Rating (IP)IP65
Colour Rendering Index (CRI)
  • Ra 80
Luminaire Luminous Flux11,848lm - 14,180lm
LED Colour ConsistencySDCM 3
LED Lumen MaintenanceL90 B10 50,000hrs
Luminaire Power (W)4 x 35w
Driver - Control Options
  • Standard - on/off
  • DALI Dimmimg
