Alto LED

PXF Lighting

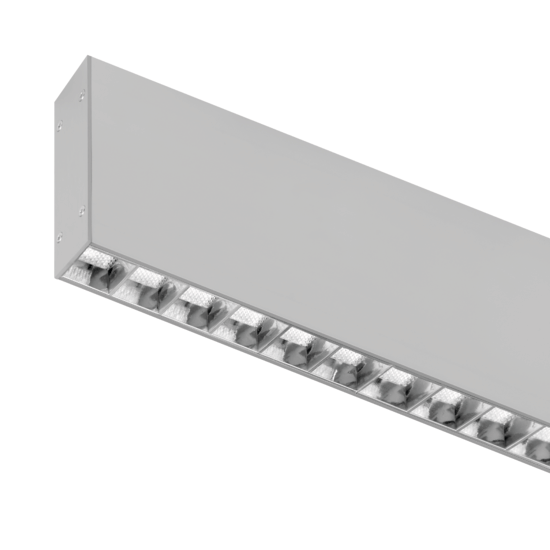

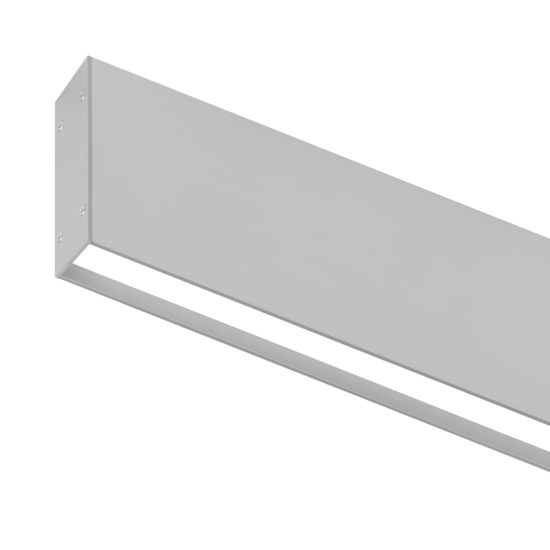

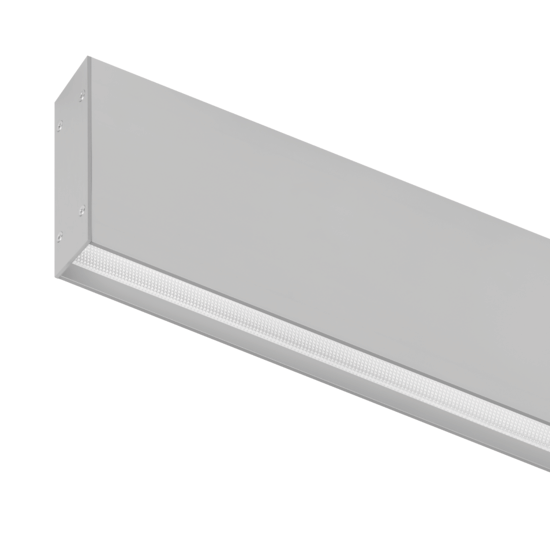

Suspend linear luminaire with a 28mm wide extruded aluminium body.
Designed for use in offices, classrooms & commercial applications.
Featuring a range of output, dimming & CCT options.

Available as standard in white, black & matt silver.
Additional finishes are available upon request, including timber finishes.

  • 545mm, 1085mm, 1625mm or 2170mm long
  • 28mm wide x 100mm high
  • Direct or Direct/Indirect Distribution
  • Single or Dual switching
  • Connect multiple with internal through wiring
  • Lamp life L80 B10 72,000hrs
  • IES files available

Features

Features
Wattage
11w - 77w
Lumen Output1320lm - 9650lm
Drive CurrentSet your own (350mA Standard)
Diffuser / ReflectorOpal, Microprismatic or Polished Louvre
Colour Temperature3000K, 4000K or Tuneable White
Colour RenditionCRI 80 or CRI 90
SDCM3
IP RatingIP20

Dimming Options

  • Non-Dimmable - Standard
  • 1-10V Analogue dimming
  • DALI
  • Casambi
Spec SheetMore Info

Technical documentation is available on request
Including LM-80, LM-79, Thermal Test reports & TM-21 calculations
