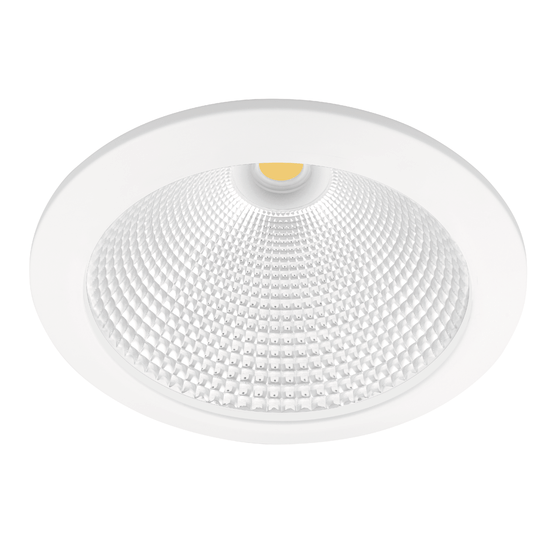

Bari DL LED - Fixed

PXF Lighting

Modern recessed LED downlight for use in commercial applications.
Featuring a range of output, dimming & CCT options.

Available as standard with a white powder coated trim.
Additional finishes are available upon request, including black & silver.

  • 155mm, 195mm or 230mm Diameter
  • 105mm, 175mm or 212mm Cutout
  • Lamp life L90 B10 60,000hrs
  • IES, BIM / Revit files available

Features

Features
Wattage
15w, 21w or 29w
Lumen Output1670lm - 3260lm
Beam Angle45°, 50° or 55°
Colour Temperature3000K or 4000K
Colour RenditionCRI 80 or CRI 90
SDCM3
IP RatingIP44 Below / IP20 Above

Dimming Options

  • Non-Dimmable - Standard
  • 1-10V Analogue dimming
  • DALI
  • Casambi
Spec SheetMore Info

Technical documentation is available on request
Including LM-80, LM-79, Thermal Test reports & TM-21 calculations
