PXF Lighting

Imola LED

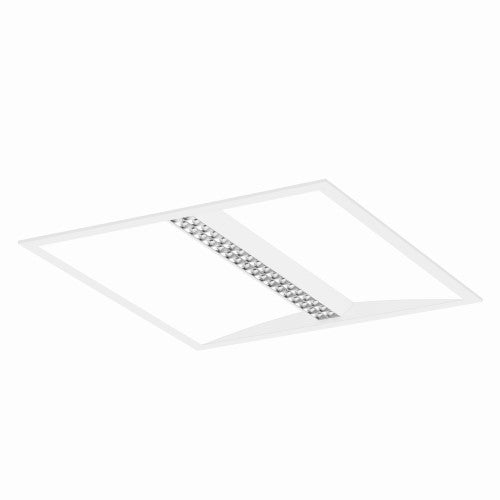

LED direct-indirect panel luminaire featuring side opal sections for soft and uniform illumination. High glare control is achieved through special louvers and high-end microprismatic materials. Premium electronics help to maintain high efficacy and lifelength. EN12464-1 compliant.

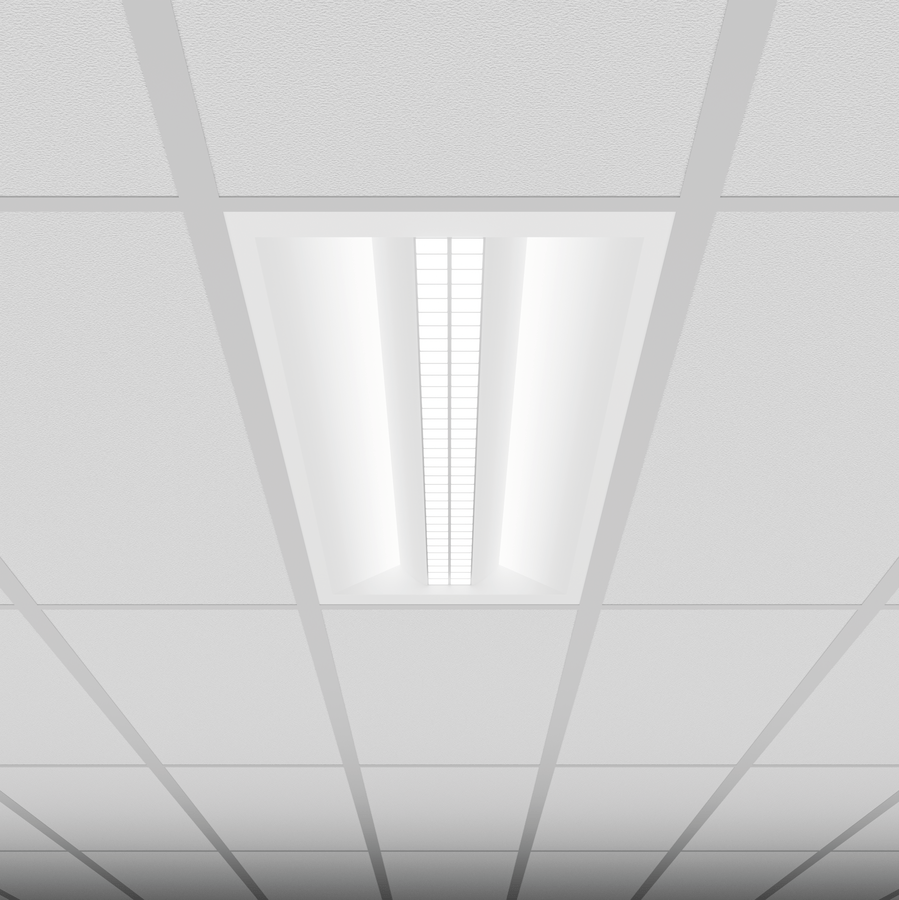

Mounting: Recessed into a tee rail ceiling

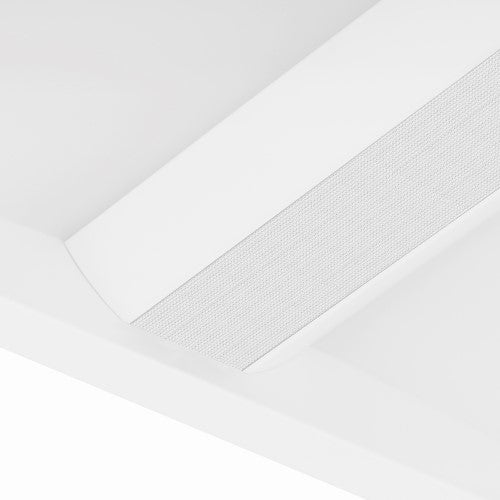

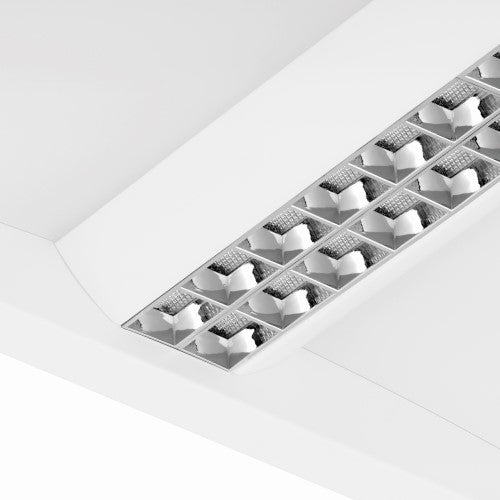

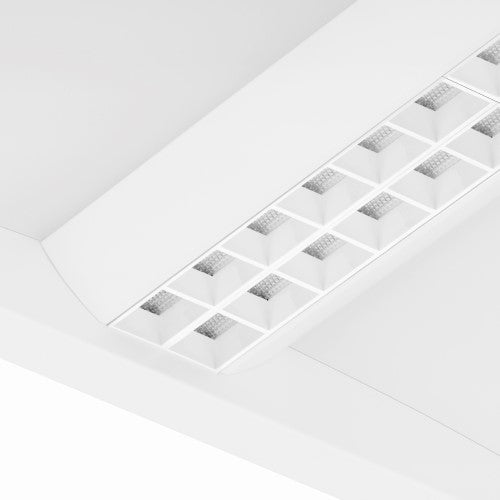

Direct light distribution: microprismatic diffuser MPRM or parabolic louver PAR (white or metallised).

Indirect light distribution: structural OPAL diffusers.

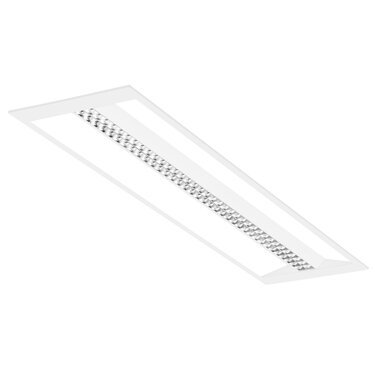

595mm x 595mm or 1195mm x 295mm

Downloads

IES Files
Manufacturers Page

Technical Parameters

Luminaire Luminous Flux
    3250lm - 4700lm
Luminaire Power (W)
    36w - 44w
Colour Temperature (CCT)
  • 3000K
  • 4000K
Colour Rendering Index (CRI)
  • Ra > 80
  • Ra > 90
LED Colour Consistency
    SDCM 3
LED Lumen Maintenance
    L80 54,000 B10
Driver - Control Options
  • Standard - on/off
  • DALI
  • Casambi
Ingress Protection Rating (IP)
    IP20
Impact Resistance Rating (IK)
    IK03
