Parabolic Slim NT LED

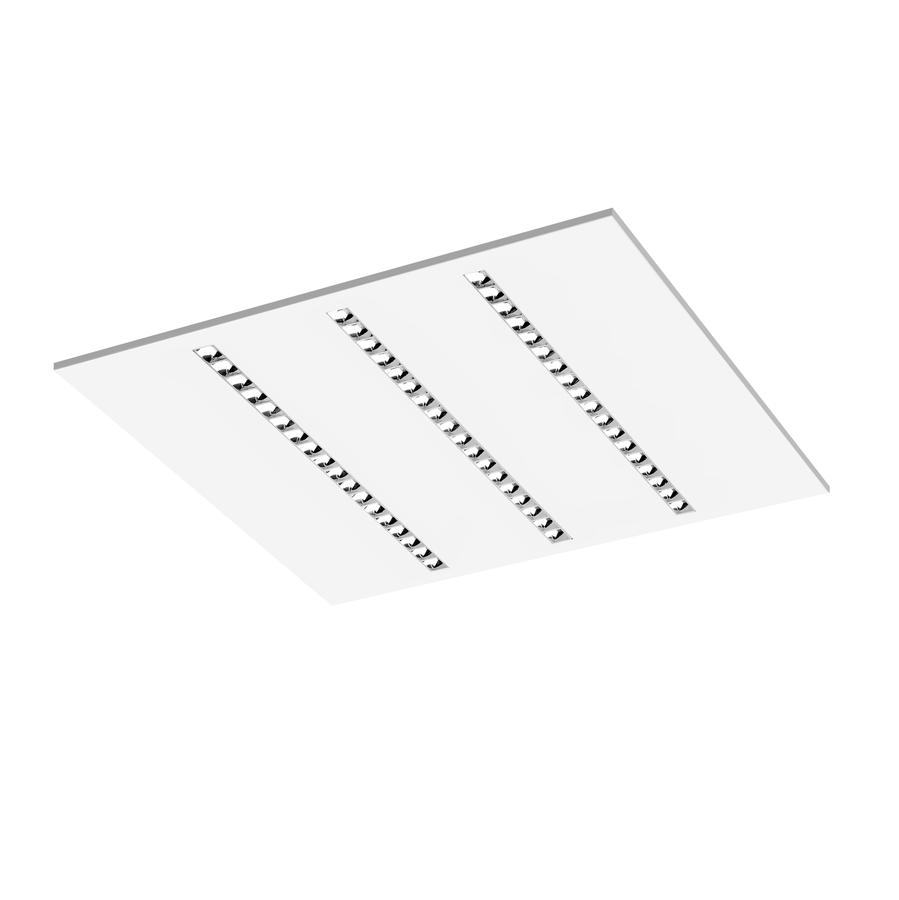

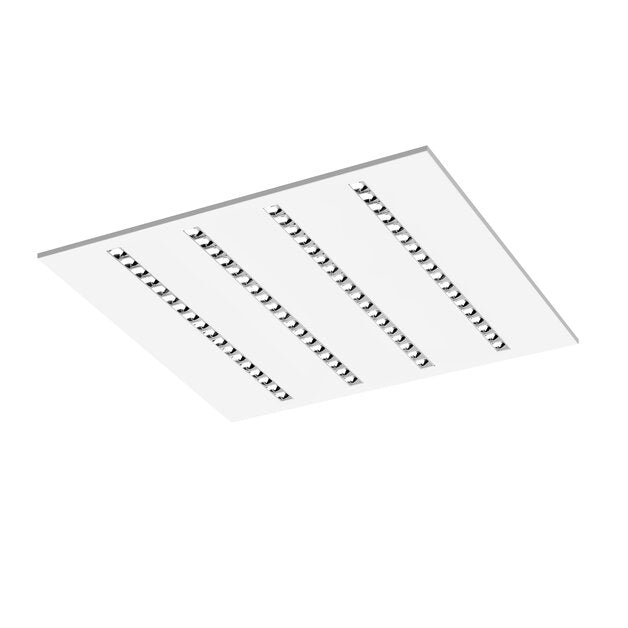

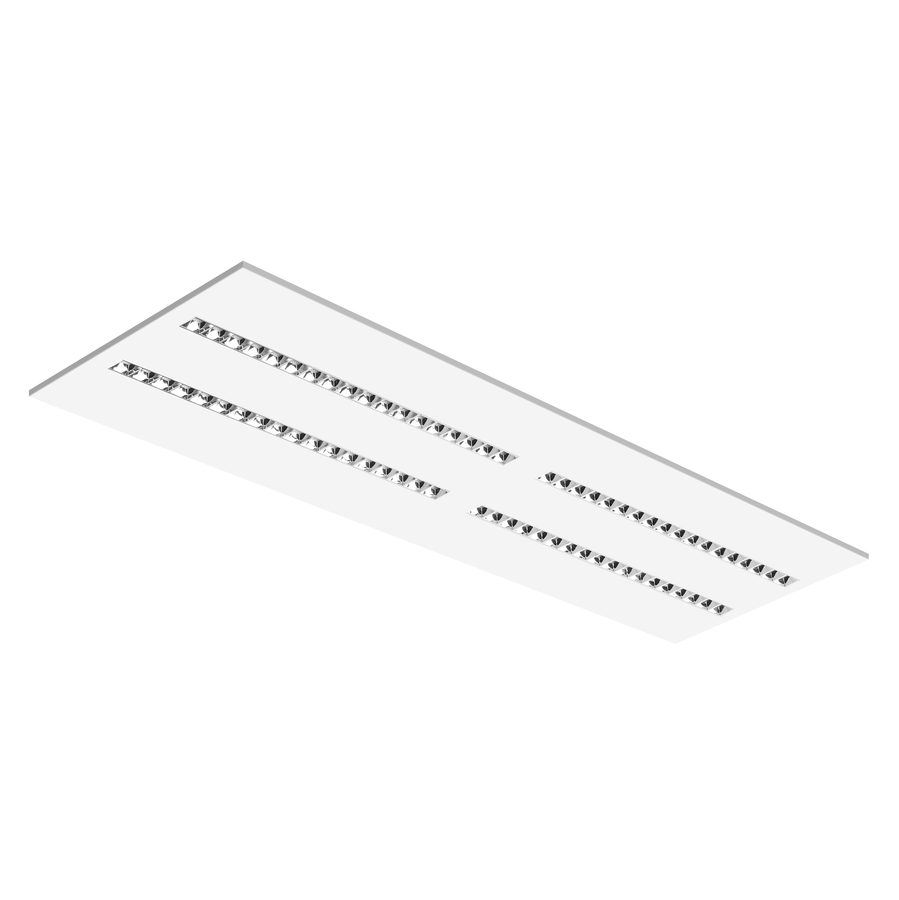

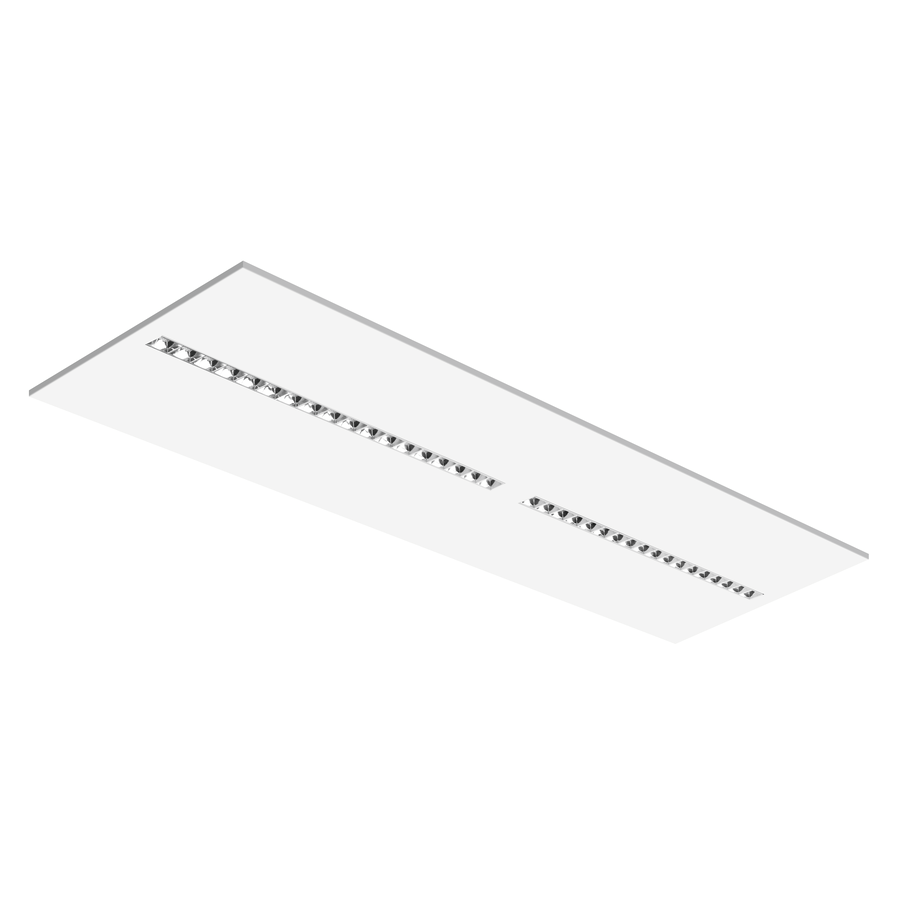

Modern louver luminaire for LED light sources of high technical and optical performance. The luminaire has a very low glare rate thanks to parabolic louvers as well as low power consumption comparing to traditional light sources. Parabolic SLIM LED thanks to the innovative optical system is ideal for lighting office spacer, in particular to work with computers.

Surface mounted

High gloss aluminum louvre with microprism diffuser

596mm x 596mm or 1196mm x 296mm

White, grey or black finishes

3000k, 4000k & tunable white options

Downloads

IES Files
Manufacturers Page

Technical Parameters

Luminaire Luminous Flux
    1220-4600lm
Luminaire Power (W)
    19-38W
Colour Temperature (CCT)
  • 3000K
  • 4000K
Colour Rendering Index (CRI)
  • Ra 80
  • Ra 90
LED Colour Consistency
    SDCM 3
LED Lumen Maintenance
    L90 B10 54,000hrs
Driver - Control Options
  • Standard - on/off
  • DALI
  • Casambi
Ingress Protection Rating (IP)
    IP20
