Ligman

Odessa 2 Cluster Pole

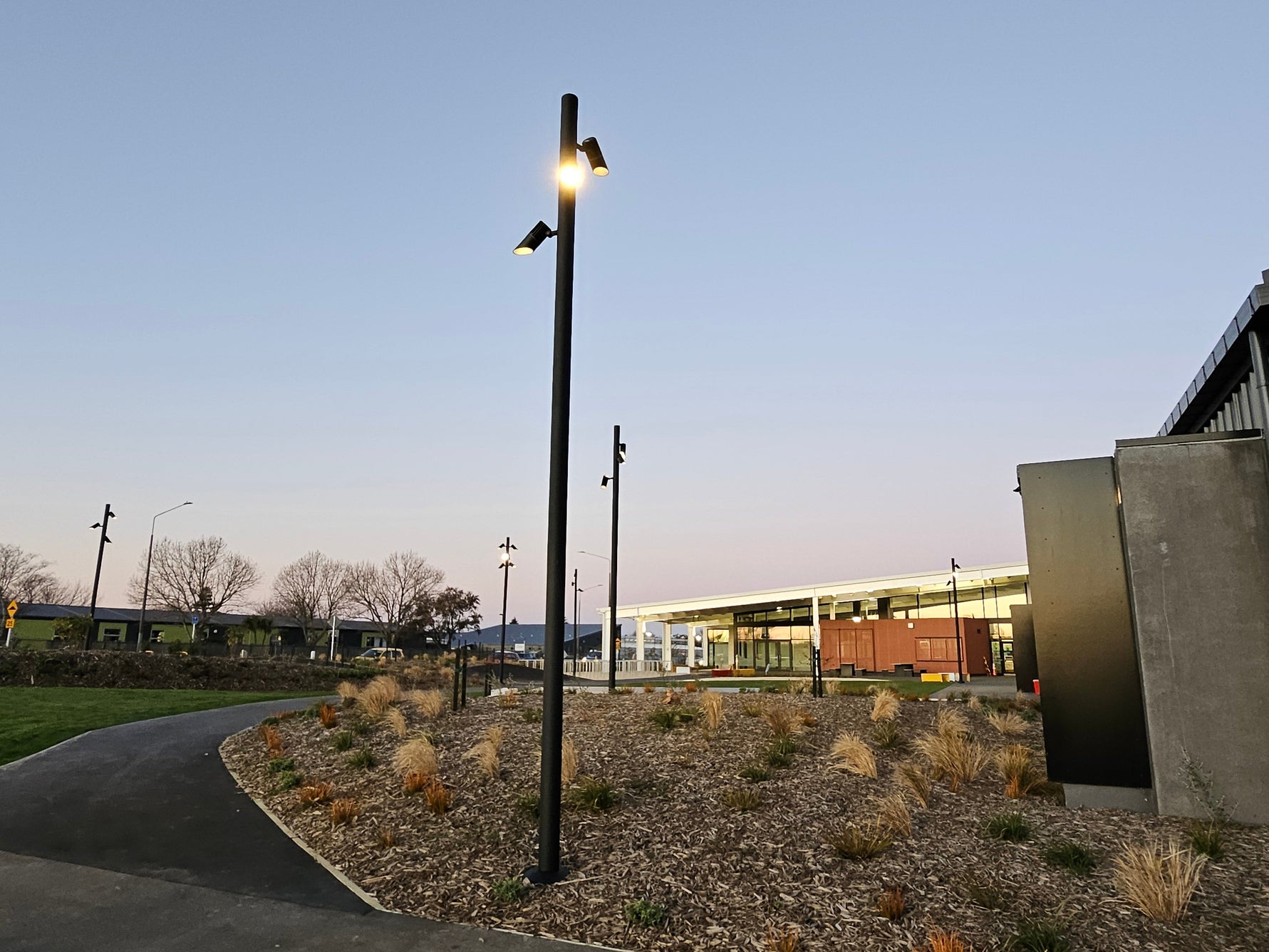

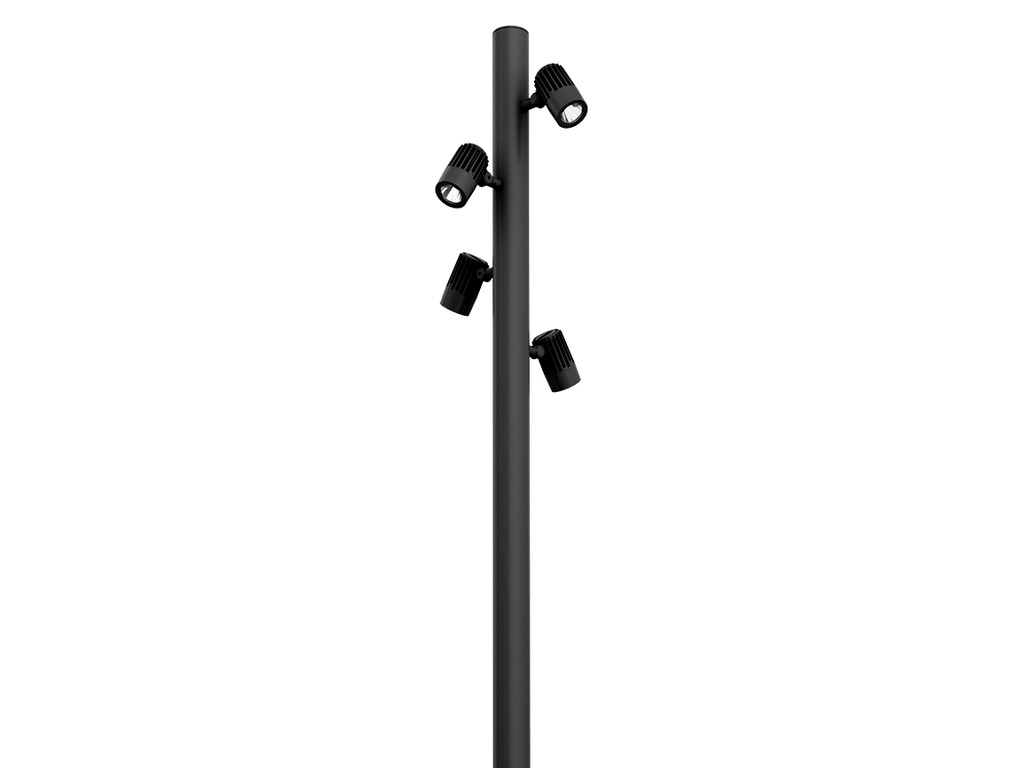

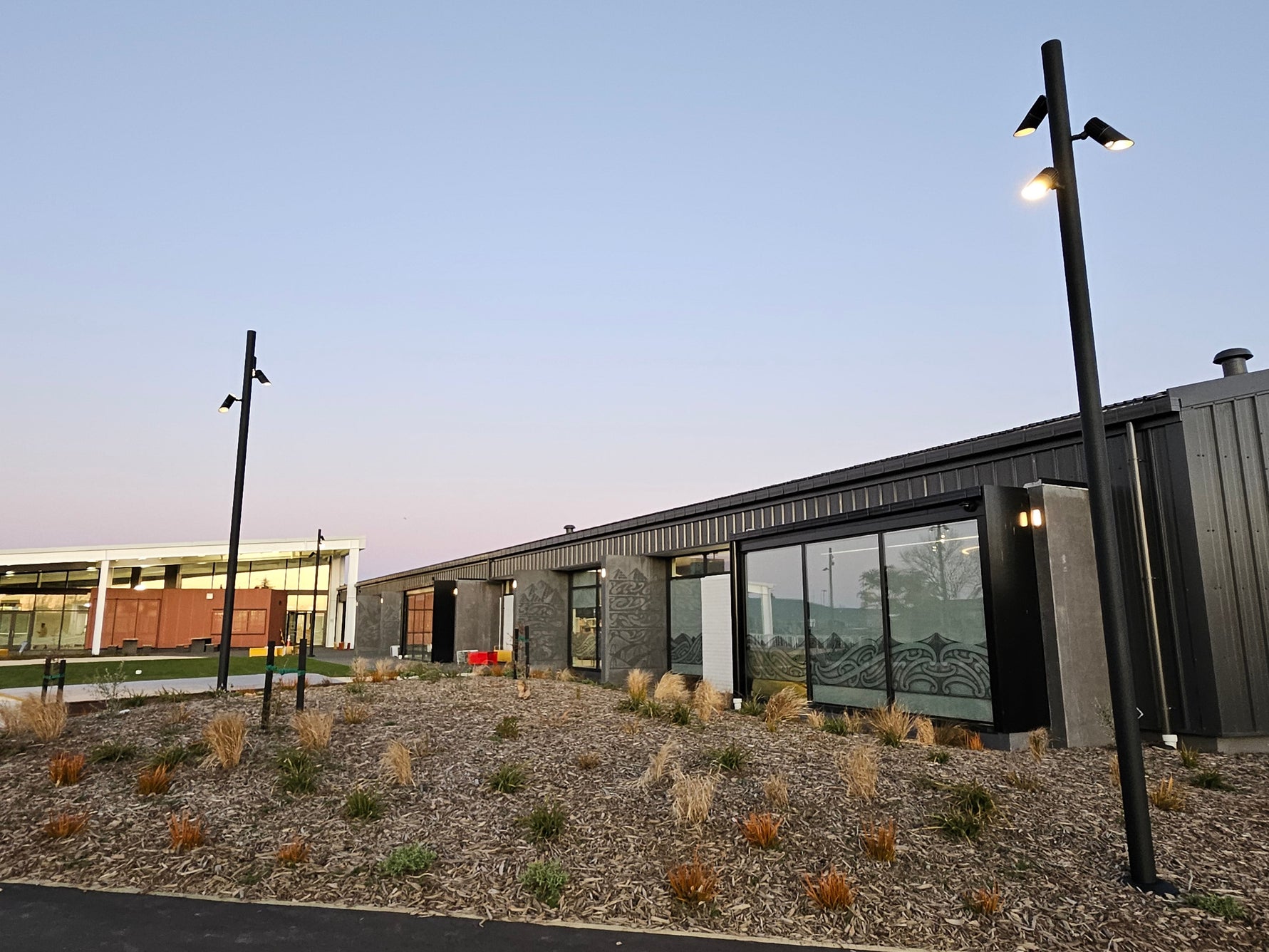

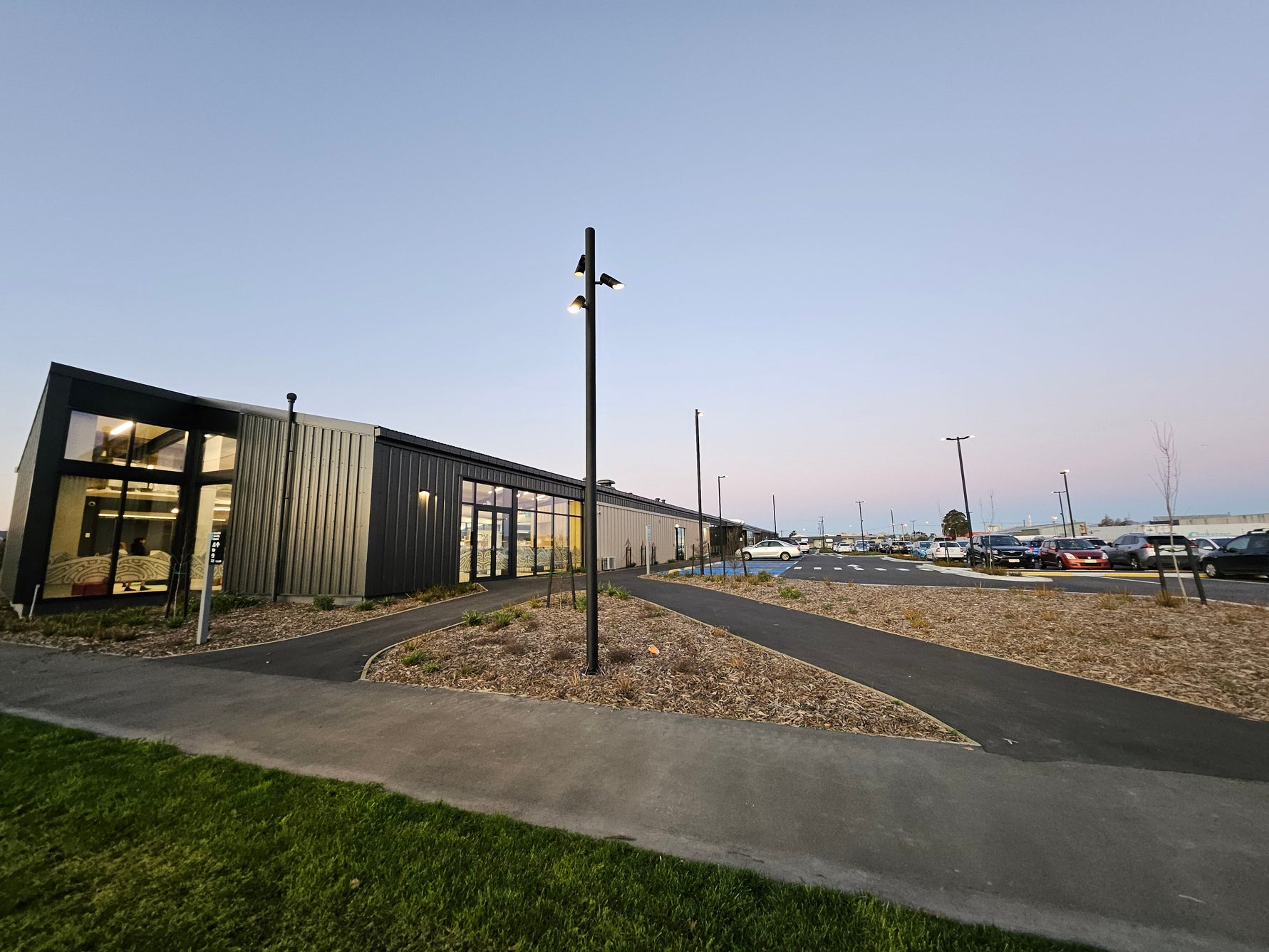

Adjustable column stylish projector spiral-cluster solution. Flexible project solutions in attractive spiral cluster arrangements utilizing the naturally beautiful and unique contemporary ODESSA projector range.

  • LM6 Die-cast aluminum housing and frame.
  • Chrome free pretreatment before powder coating ensuring high corrosion resistance
  • Single cable entry
  • Stainless steel fasteners in grade 304 with zinc flake coating (ZFC)
  • Durable silicone rubber gasket
  • Integral control gear
  • With medium Odessa spotlights
  • Five optic choices
  • 4m, 6m or 8m poles

Downloads

IES Files
Data Sheet

Technical Parameters

Luminaire Luminous Flux
    11,848lm - 14,180lm
Luminaire Power (W)
    4 x 35w
Colour Temperature (CCT)
  • 2700K
  • 3000K
  • 4000K
Colour Rendering Index (CRI)
  • Ra 80
LED Colour Consistency
    SDCM 3
LED Lumen Maintenance
    L90 B10 50,000hrs
Driver - Control Options
  • Standard - on/off
  • DALI
  • 0/1-10V
Ingress Protection Rating (IP)
    IP65
Impact Resistance Rating (IK)
    IK08
