Impressions Lighting

Galactic 600x600

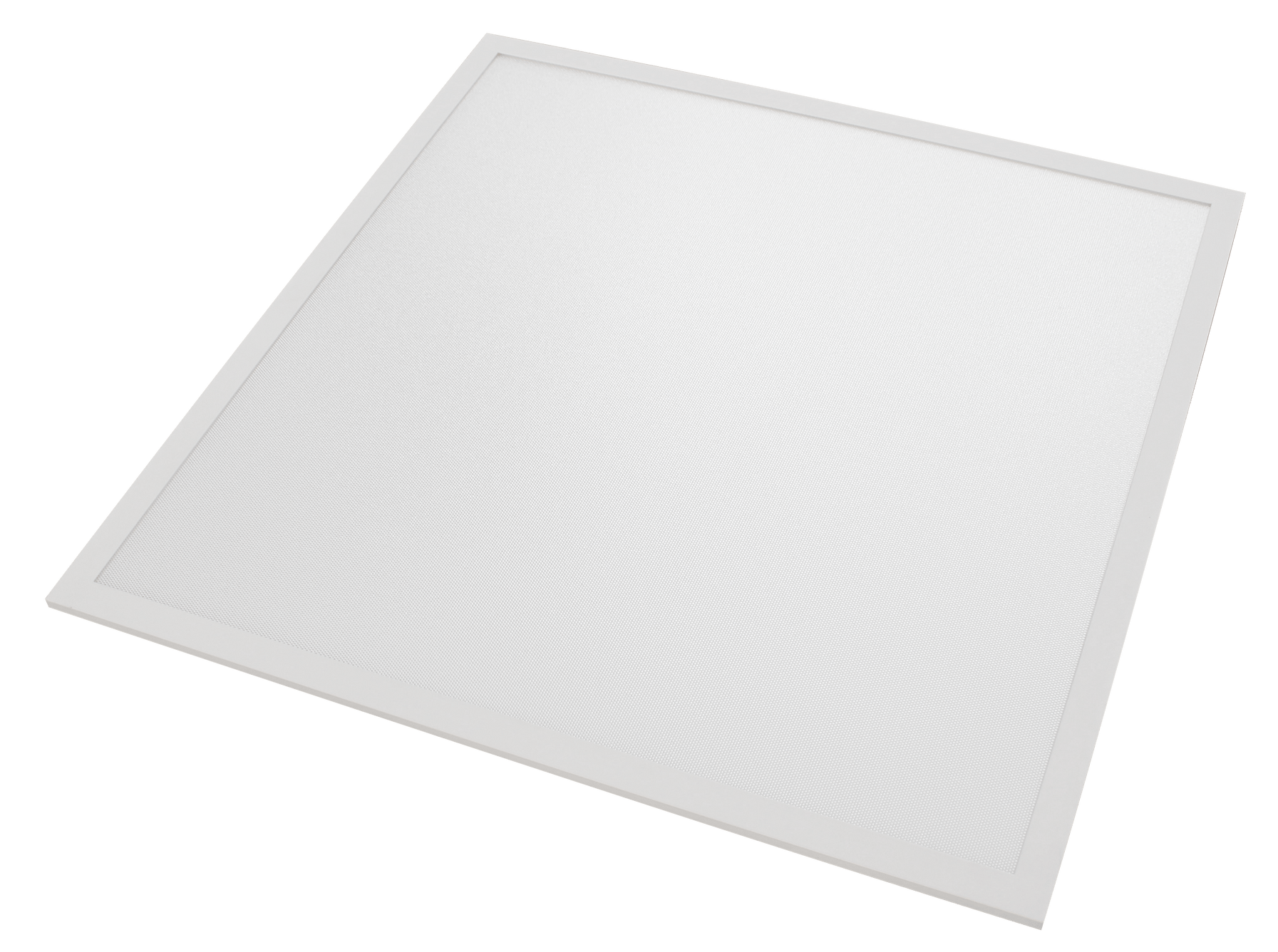

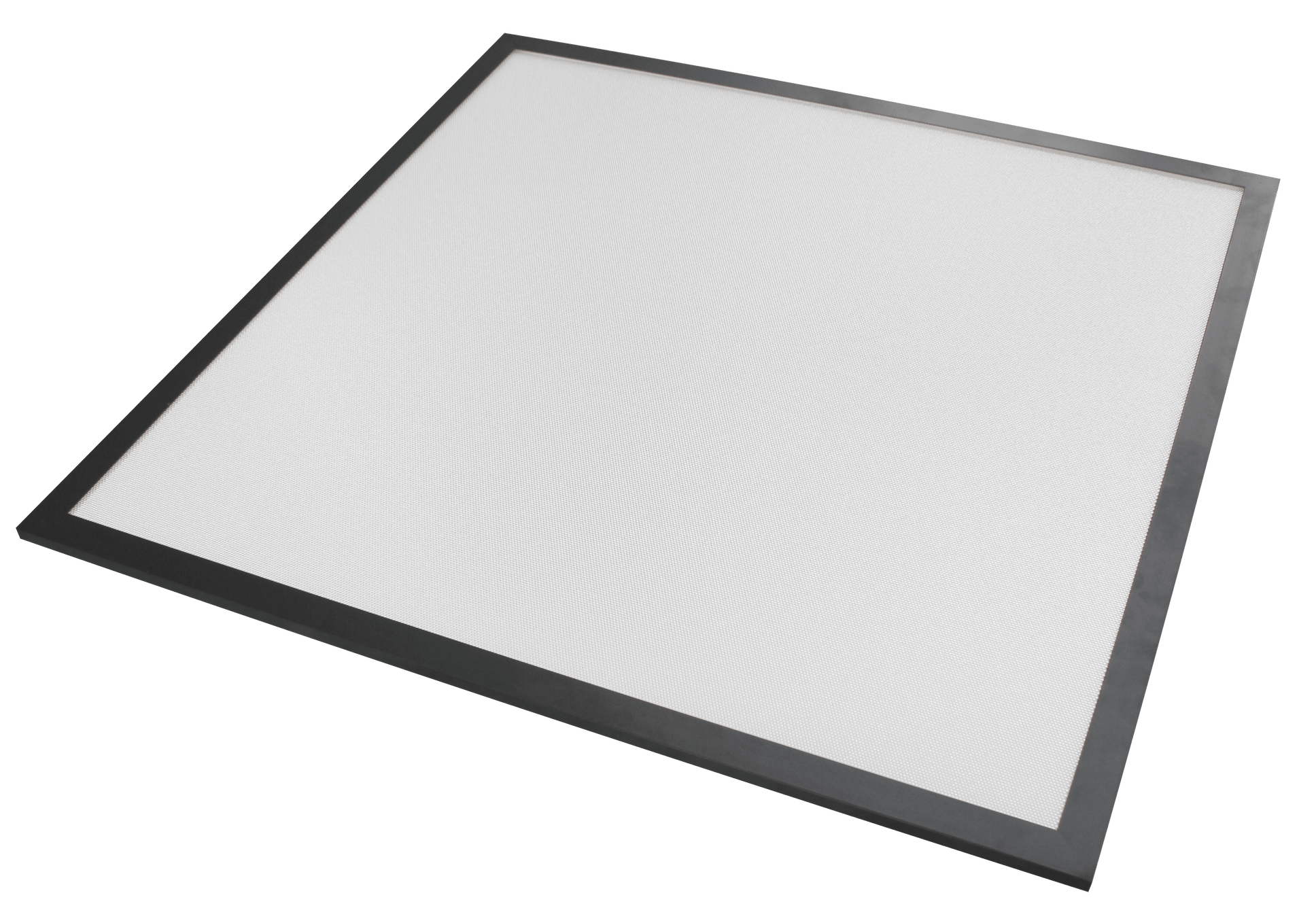

Experience vibrant, true-to-life colours with our Backlit LED Panel, boasting a CRI of 98, R9 of 97, and IP54 protection from below.

Designed to meet UGR19 compliance, it provides comfortable, glare-free lighting ideal for various environments.

Customize your illumination with selectable output settings, and enjoy a sleek design that complements any space while delivering precise, adaptable lighting.

Ticking all the boxes for education & medical facilities, all while being perfect for the everyday office.

  • Cyanosis Observation Index (COI) = 0.571
  • CRI 98, R9 97 & SDCM 2.
  • IP54 from below
  • Standard multi-wattage drivers - 8 output settings
  • Supplied with Seismic restraints already fitted

Downloads

IES Files
Data Sheet

Technical Parameters

Luminaire Luminous Flux
    2791-4084lm
Luminaire Power (W)
    25.4-38.9W
Colour Temperature (CCT)
  • 2700K
  • 3000K
  • 3500K
  • 4000K
Colour Rendering Index (CRI)
  • Ra 98 R9 97
LED Colour Consistency
    SDCM 2
LED Lumen Maintenance
    L80 B10 102,000hrs
Driver - Control Options
  • Standard - on/off
  • DALI
  • Casambi
Ingress Protection Rating (IP)
    IP54
Impact Resistance Rating (IK)
    IK03
