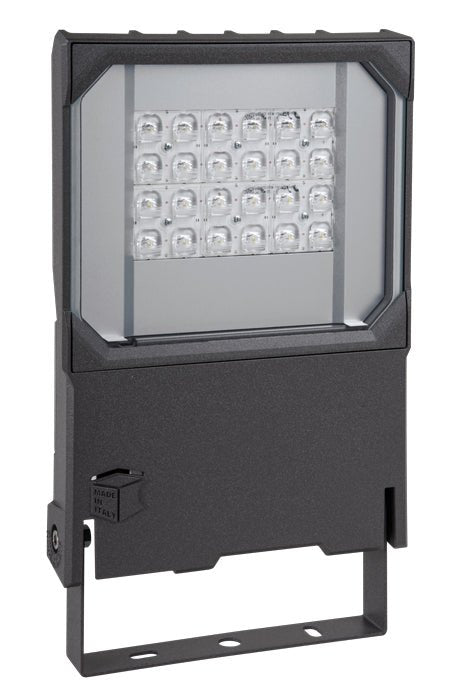

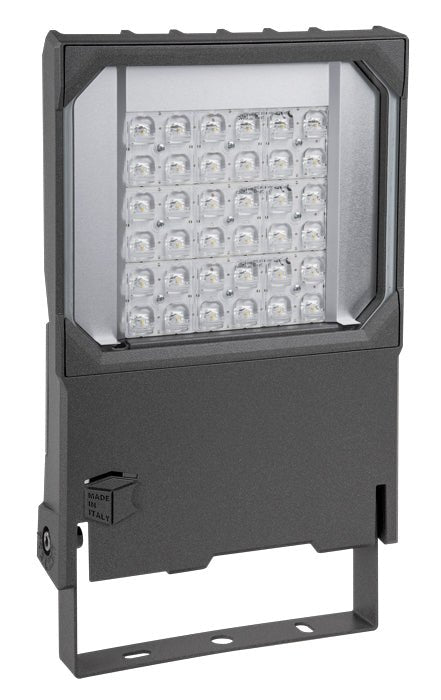

Compact LED floodlight. Born to combine an essential with a contemporary design, Pixel’s technological evolution. Perfect for lighting industrial and residential areas, entrances, facades of buildings, forecourts and small sport facilities.

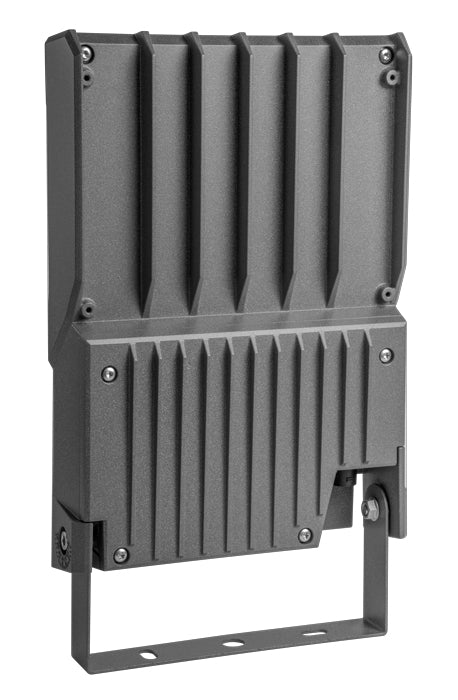

Housing and frame: in die-cast aluminum. Housing with cool-ing fins for maximum heat dissipation.
Lateral goniometric scale for quick tilt adjustment.
Paintwork: thermosetting polyester powder, prior degreasing and phosphochromatizing process that ensure an extremely high resistance to chemical and
atmospheric agents.
Safety glass: extra clear tempered 4 mm.

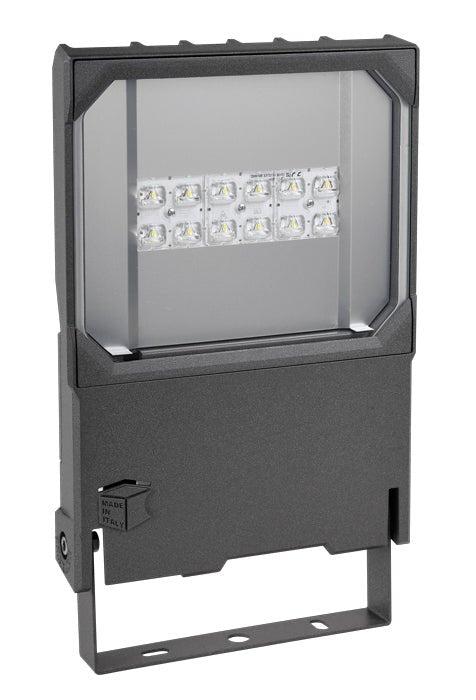

LED modules 6×2: anti‑sulfur, CRI>70, CCT 4000K, SDCM 3.
Lens: 2×2 multiple cluster in PMMA Anti UV UL94, asymmetrical optic, asymmetrical SPORT optic and street optic with light distribution ME3M, Samsung LH502D.
Lumen maintenance: 129,000h L90 B20 @ta25, 110,000h L90 B20 @ta50.
Power supply: 220 ÷ 240V 50-60Hz with electronic ballast, surge protection 6/10kV, waterproof 3p fast plug connector.
Bracket: 3 mm slotted and thick shaped steel.

Available on request:
• DALI dimmable driver and output reduction with Vmidnight system;
• SPD 12kV;
• CRI80-CRI90;
• amber lenses for AS e ST ME3M;
• Zhaga: Socket 4 pin (Zhaga Book 18);
• additional optics (CYC,15°,55°,100°);
• special paintwork: colour and type of corrosion painting cycle (C5).

Downloads

Data SheetDownload file
IES FilesDownload file

Technical Parameters

Colour Temperature (CCT)
  • 2700K
  • 3000K
  • 4000K
Ingress Protection Rating (IP)IP66
Colour Rendering Index (CRI)
  • Ra 70
Luminaire Luminous Flux3620-14,425lm
LED Colour ConsistencySDCM 3
LED Lumen MaintenanceL90 B20 129,000hrs
Luminaire Power (W)24W, 48W, 72W & 90W
Driver - Control Options
  • Standard - on/off
  • DALI Dimmimg
