Roma LED

PXF Lighting

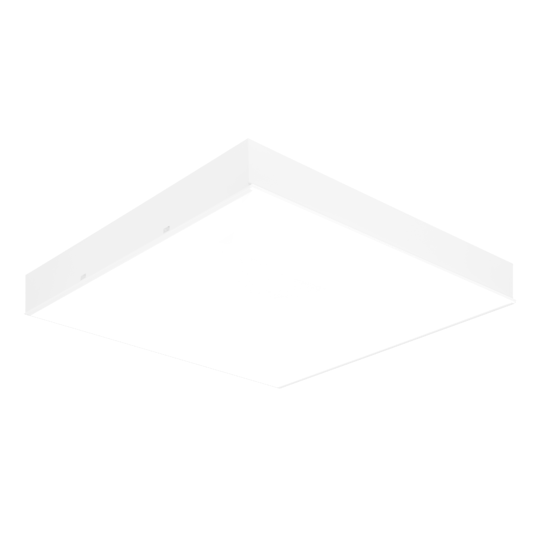

ROMA LED is a luminaire characterized by good luminous parameters, quick installation and an uniform luminance on the surface of the diffuser. It is designed for installation in modular ceilings with a visible supporting structure in public facilities.

Available as standard with a white powder coated trim.
Additional finishes are available upon request, including black & silver.

Optional TCI Multi-wattage LED Driver option with accessible dip-switches, Lumen table can be provided upon request.

  • 1200x600, 1200x300, 600x600 & 600x300
  • Opal or microprism diffuser
  • Specular, faceted or matt reflector
  • IP40 Below / IP20 Above
  • IES & BIM/Revit files available

Features

Features
Wattage
24-76w
Lumen Output2,010lm - 10,020lm
Colour Temperature3000K or 4000K
Colour RenditionCRI 80 or CRI 90
SDCM3
Life (Reported)L80 B10 54,000hrs
Life (Calculated)L80 B10 83,000hrs

Dimming Options

  • Non-Dimmable - Standard
  • 1-10V Analogue dimming
  • DALI
  • Casambi
Spec SheetMore Info

Technical documentation is available on request
Including LM-80, LM-79, Thermal Test reports & TM-21 calculations
