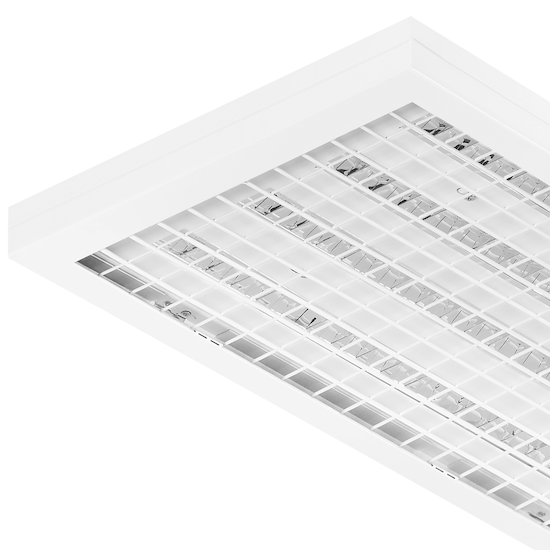

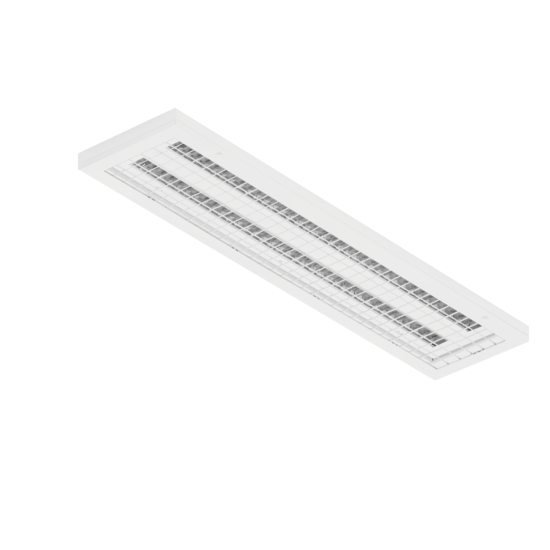

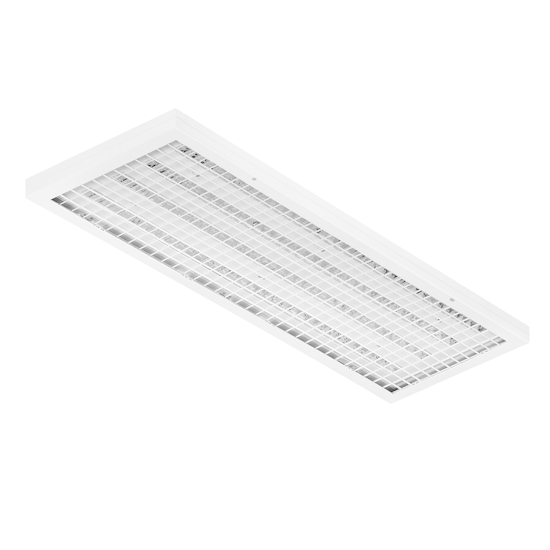

Torino Sport LED

PXF Lighting

A modern luminaires with high optical and technical parameters designed for sports facilities (for example: tennis and squash courts). Characterized by symmetrically placed aluminum louvers and protection grid.
Torino Sport LED is certified for IK and against ball throwing (DIN 18032-3:1997-04 and DIN EN 13964:2014-08)

Available as standard with a white powder coated trim.
Additional finishes are available upon request, including black & silver.

Optional TCI Multi-wattage LED Driver option with internal dip-switches, Lumen table can be provided upon request.

  • 1226x274 or 1226x486
  • Polish parabolic reflector
  • IP40 Below / IP20 Above
  • IES & BIM/Revit files available

Features

Features
Wattage
50w - 145w
Lumen Output6,000lm - 20,000lm
Colour Temperature3000K or 4000K
Colour RenditionCRI 80 or CRI 90
SDCM3
Life (Reported)L80 B10 54,000hrs
Life (Calculated)L80 B10 83,000hrs

Dimming Options

  • Non-Dimmable - Standard
  • 1-10V Analogue dimming
  • DALI
  • Casambi
Spec SheetMore Info

Technical documentation is available on request
Including LM-80, LM-79, Thermal Test reports & TM-21 calculations
